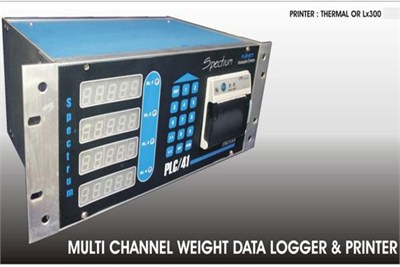

Contact SupplierWe are offering multi channel weight data logger and printer. Multi channel weight data logger and printer is panel mounted weight controller , this controller is used to control weighing quantity up to four material, it is having four relay output for controlling conveyor , solenoid valves motor etc.
specifications
brand: planet automation systems
display: 6-digit, 7-segment, 1"25mm red color x 4 display
weight channel: 1 channel, 2 channel, 3 channel, 4 channel
weight capacity : calibrated up to 10,000 kg and more
enclosure: 138mm w x 138mm h x 150 mm d, panel mounted
keyboard: numerical keys, up, down, set, done, exit ( 15 keys)
units: pounds, ounces, kilograms, grams etc depend upon calibration
display increment: default
sample rate: 10 samples per second,
decimal point : 0.000, 00.00, 000.0, 0000
load cells: up to four load cell of 2vmv
set point relay output : four relay each set point and infly
supply: 230 v - ac power 50 hz , 12 vdc � for battery power
sensitivity: 9.999 to 9999
operating temperature: 5 c to 45 c
battery operation: optional
printing : yes lx300+ dot matrix
power consumption : less then 10 w
multi channel weight data logger and printer is having set point facility in which we can set required weight and infly, also it is having printing facility in which we can printing actual material field in hopper, this controller is wildly used in industrial as well as construction equipment, it is having good stability on industrial enviornmental and this indicator is made for sites and industrial use.
Use:
1)concrete mixer weighing and weight controlling
2)conveyor and hopper weighing and controlling
3)batching of material
