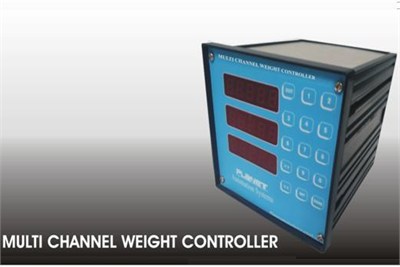

We are offering multi channel weight controller. Multi channel weight controller is panel mounted weight controller , this controller is used to control weighing quantity up to four material, it is having four relay output for controlling conveyor , solenoid valves motor etc.
specifications
brand: planet automation systems
display:
6-digit, 7-segment, 1"25mm red color x 4 display
weight channel:
1 channel, 2 channel, 3 channel, 4 channel
weight capacity :
calibrated up to 10,000 kg and more
enclosure:
138 mm w x 138 mm h x 150 mm d, panel mounted
keyboard:
numerical keys, up, down, set, done, exit ( 15 keys)
units:
pounds, ounces, kilograms, grams etc depend upon calibration
display increment:
default
sample rate:
10 samples per second
decimal point :
0.000, 00.00, 000.0, 0000
load cells:
up to four load cell of 2vmv
multi channel weight controller is having set point facility in which we can set required weight and infly, this controller is wildly used in industrial as well as construction equipment, it is having good stability on industrial environmental and this indicator is made for sites and industrial use,
use:
1) concrete mixer weighing and weight controlling
2) conveyor and hopper weighing and controlling
3) batching of material
