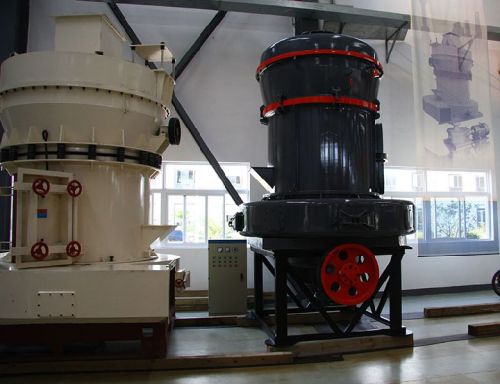

Mtw European Trapezium Mill

Listing ID #4273783

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

MTW European Mill is innovatively designed through deep research on powder mill and development experience. It absorbs the latest European powder grinding technology and concept, and combines the....

View More Details

Send Enquiry

Product Details

MTW European Mill is innovatively designed through deep research on powder mill and development experience. It absorbs the latest European powder grinding technology and concept, and combines the suggestions of 9158 customers of powder mill. This mill perfectly satisfies the production demands of the customers on 200-33μm (80-425Mesh) fine powder.

Advantage

1. unique structure 2. all thin oil lubrication 3. low power consumption, product size uniformity 4. whole cast steel bearing 5. stable performance 6. limited analytical techniques, higher intensity 7. less costs, easy management 8. simple, compact and light mechanical structure

Product introduction

Production capacity : 3-50T/H
Range of Application : MTW mill is mainly used in mining industry, building materials industry and chemical industry, etc.
Processable Material : It is suitable for materials such as quartz, feldspar, calcite, talcum, barite, fluorite, rare earth, marble, Bauxite, manganese ore, iron ore, copper ore, phosphate rock, zircon sand, slag, slag, cement and so on.

Working principle

The system consists of grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet, motors, etc. Big lump materials are crushed to required size by jaw crusher, then elevated to buffering hopper through elevator, after that fed into the mill to be ground. Materials are to be ground between ring and rollers, and move up with the air flow, those particles which cannot pass the separator will fall down and be ground again, while others will be collected as finished product. Air flow passing through separator will go to the air blower for recycling, it's a closed system.

Technical Parameters

Model		MTW110	MTW138	MTW175	MTW215
Major diameter of ring(mm)		Ф360×190	Ф460×240	Ф520×280	Φ640×320
Inner diameter of ring (mm)		Ф1100×190	Ф1380×240	Φ1750×280	Φ2150×320
Max.Feed Size(mm)		<30	<35	<40	<50
Final size(mm)		1.2-0.045, fineness can reach to 0.038	1.2-0.045, fineness can reach to 0.038	1.2-0.05, fineness can reach to 0.038	1.2-0.05, fineness can reach to 0.038
Capacity(t/h)		3-10	6-20	10-35	20-50
Main unit motor	Power(kw)	55	90	160	280
Centrifugal induced draft fan motor	Power(kw)	55	110	200	315
Classifier speed regulating motor(variable frequency motor)	Power(kw)	7.5	22	37	90
Magnetic Vibrating Feeder	Model	GZ2F	GZ3F	GZ4F	GZ5F
Magnetic Vibrating Feeder	Power(kw)	0.15	0.2	0.45	0.65
