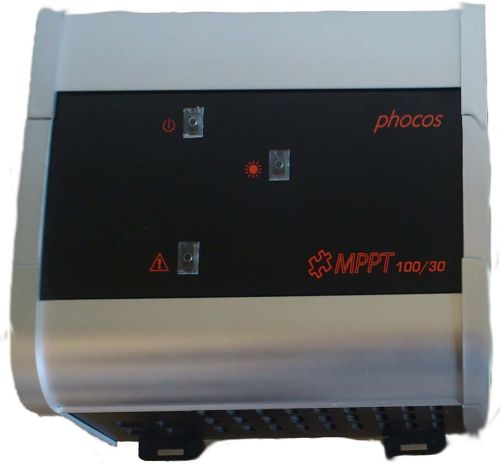

Phocos Mppt Charge Controller

Listing ID #656991

Get Latest Price

MOQ 2 Piece(s)
Brand NamePhocos
TypeMPPT100/30
Max. Solar Input Voltage Voc95 V
Standby Power Consumption< 80 mW @24 V system voltage(< 3 mA)
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Brand Name Phocos
Type MPPT100/30
Grounding Negative grounding
Standby Power Consumption < 30 mW @12 V system voltage(< 2 mA)
Max. Wire Size 32 mm²
Max. Battery Voltage 32 V
Main Charge 14.4 V (25 °C), 0.5 h (daily)
Max. PV Input Power 450 W@12 V, 900 W@24 V
Equalization 14.8 / 29.6 V (25 °C), 2 h Activation: battery voltage < 12.1/24.2 V
Nominal Battery Charge Current 30 A
Power Conversion Efficiency Max. 98%
Temperature Compensation -4 mV / cell*K
Float Charge 13.8/27.6 V (25 °C)
Standby Power Consumption < 80 mW @24 V system voltage(< 3 mA)
Case Protection IP 22
Battery Type Lead (GEL, AGM, Float)
Boost Charge 14.4 / 28.8 V (25 °C), 2 h Activation: battery voltage < 12.3/24.6 V
Max. Battery Charge Current 33 A
Min. Solar Input Voltage Vmp > 16 / 32 V
Nominal Voltage 12 / 24 V, Automatic Recognition
Ambient Temperature Range -40 to + 50 °C
Dimensions 185 × 150 × 115 mm
Weight 1.6 kg
Max. Solar Input Voltage Voc 95 V

We are into business of manufacturing, supplying and exporting a wide assortment of solar charge controllers. The offered products are reckoned amongst the clients for their availability and various specifications. The offered products are known for their hassle free performance and corrosion resistant nature.
features:
effectiveness
optimum output
quality tested.

Additional Information

Packaging Details Carton Box Wooden Pallet
Delivery Time 1-10 Days
