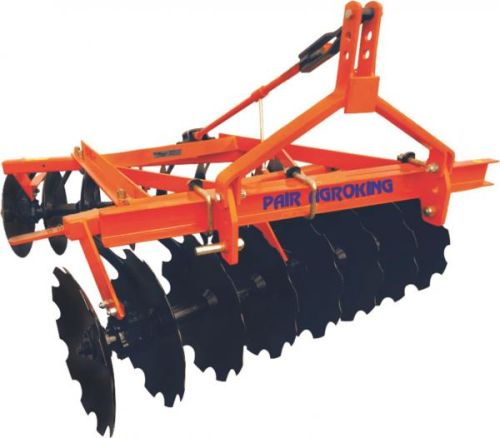

Mounted Offset Disc Harrow

Listing ID #3920701

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

Systamatic Engineering is used to provide stability for the preparation of soil and make it compatible with variety of tractors Used in light and medium Soil. Easy to carry in mounted condition using tractor lift. High quality bearings and hubs ensure smooth operation and put minimal load on the tractor.
View More Details
Send Enquiry

Company Information

  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Systamatic Engineering is used to provide stability for the preparation of soil and make it compatible with variety of tractors
  • Used in light and medium Soil.
  • Easy to carry in mounted condition using tractor lift.
  • High quality bearings and hubs ensure smooth operation and put minimal load on the tractor.




Description

PAMODH-12

PAMODH-14

PAMODH-16

PAMODH-18

PAMODH-20

PAMODH-22

PAMODH-24

Frame (mm)

75x10 Angle Frame With 100x50 Front Channel

Gang Bolt /Axle (mm)

30mm (Solid Sq. Rod)

No. of disc

12

14

16

18

20

22

24

Type of Disc

Notched Disc In front gang & plain Disc In rear gang

Disc Diameter (mm)

508x3 T (20”) or 560x4 T (22”)

Width of cut (mm Approx.)

1420

1635

1852

2068

2285

2502

2718

Distance Between Disc (mm)

228mm

Bearing Hub

4

6

8

Weight (Kg. Approx)

390

430

480

550

615

676

731

Tractor Power (HP)

30-40

40-50

50-60

60-70

70-80

80-90

90-100



Company Details close-icon

PAIR AGROKING is a reputed name in agricultural farm equipments and agricultural implements since 1957. We are always researching for the cost effective agricultural equipments and implements. And dream a green India capable of fully mechanized agricultural practices requiring less manual labour and resulting in higher productivity.
We have been contributing to agricultural growth by providing innovative implements at the most affordable prices. The company markets its products under the brand name PAIR AGROKING. To satisfy all your tillage needs, our diverse range of products includes Disc Harrows, Rotary tillers (Rotavator), Spring Loaded , Rigid Cultivators (Tillers), Laser Levellers, Disc and Mould Board Ploughs, Ridgers, Tipping Trailers, Sub Soilers etc.
Since most of our implement parts are machined in-house, this gives us a lot more control over the quality of the parts that are used in our implements. The material used in all our implement parts is tested and goes through stringent quality checks before being used in the final product.
Our company has been certified as an ISO 9001:2008 company for our Quality management systems. With High standards set which provides long lasting and high quality products for both, Indian and International markets
Business Type: Manufacturer
Location: Haryana, India
Main Products: Disc Plough,Mould Board Plough,Spring Loaded Tiller,Disc Harrow,Tractor Trolleys
Total Employees: 51 - 100 People
