Capacity(based on double shift of 300 days and standard block of 390x190x190mm)

• RTQM4: 4 Standard blocks/pallet
• Capacity/Hour: 1200standard blocks
• Theoretic Capacity / year: 81,000 cubic meters

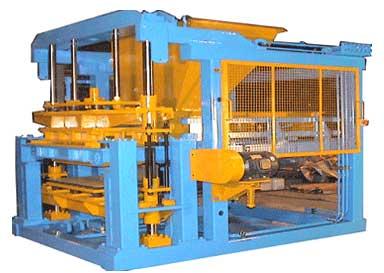

Main Features: It is one classic mould vibrating machine and very suitable to produce high strength concrete blocks. The operation cycle is short with high efficiency.

• Open frame in the front makes it very convenient to change the mould. Maintenance for it is very convenient.
• It adopts assemble moulds and avoids the traditional modem of one vibrating form.
• Forced mechanism positioning and height of products in the same level.
• The vibrating system and body are separated by a high effect absorbing-vibrating system, so it is very convenient.
• The section steel frame and advanced welding process making machine strong.
• Driven shaker grate with composite move for material feeding.
• Hydraulic components are from overseas.
• Operation is smoothly and reliable.
• PLC control system is Siemens. Control system with automatic operation, inter operation and manual operation.
• PLC system adopts Siemens of Germany and other electronic components are from famous company in the world. The system runs reliable and divided into three kinds: completely automatic, semi-automatic & manual. The running parameters can be set up and changed control panel. The system can record production and operation data.

Main Technical Parameter:

• Operation cycle: 10-15s (depending on the types of products)
• Pieces/pallet: 4 pieces concrete blocks
• Height of product: 60-200mm
• Pallet size: 890 x 540 x10mm(steel)/30~ 35mm (wood)
• Work area: 820x500mm
• Machine power: 30kW
• Dimension of machine: 8916x2950x3350mm
• Weight of machine: approximate 9000KG
