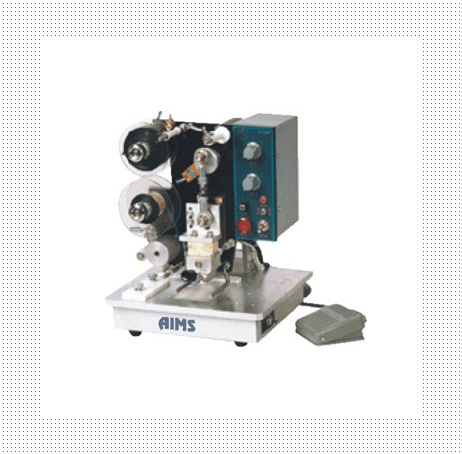

Contact SupplierMotorized Table Top Hot Foil Coder Model HFC – 25 – T, for semi-automatic registered printing of B.No., Mfg.Dt., Exp.Dt., M.R.P. `, etc. The 4 to 5 line message (of 15 character in each line) to be printed is easily composed by pushing the Brass Stereos into the grooves & tightening them for speeds upto 120 impressions per minute. The inking is in the form of Foil ribbon, which passes below the stereos & is advanced automatically after each print. The brass stereos are heated to a temperature of around 150 deg. C & hit the film onto the substrate thus transferring the print with embossing which has no drying time and is better quality than pre-printed quality. (Free accessories include 2 mm Numeric Brass Character Set, Hot Foil Ribbon & Foot Switch). This Coder is suitable for high quality registered printing on pouches, cartons, etc.
Supple Voltage | 230 Vac, 110 W |
Printing Area | 5 lines of 16 char. |
Prints using | Easily Changeable Copper / Brass stereos |
Printing Speed | Max. 60 prints / min. |
Printing Medium | Replaceable Foil Ribbon roll (Black, Red, White, Golden, etc.) |
Inking Medium | Special rechargeable ink / wax cartridge / ink paste |
Impressions | Appx. 5000 impressions per 400 ft. roll of 25 to 35 mm width |
Weight | 9 Kgs |
Impression | 360L 265W 263H |
