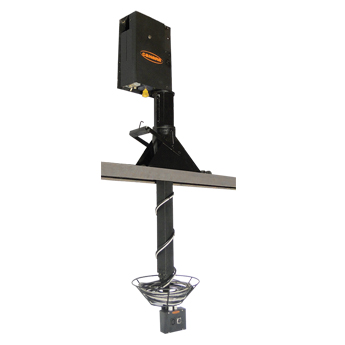

Motorised Telescope(with boot trolley)

Listing ID #3837297

Get Latest Price

ControlRCP, Wireless, Handheld Remote, VFD
Electric Power:AC 240 V Single Ph, AC 440 V 3 Ph
Min Collapse Height0.6 Mtr
Max Travel Distance8 Mtr
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Lifting Rope 2 x 3.2 mm dia anti-rotating ropes
Self Weight 62 Kgs
Protection Rating IP 20
Min Collapse Height 0.6 Mtr
Max Travel Distance 8 Mtr
Control RCP, Wireless, Handheld Remote, VFD
Locking System Dynamic Self Locking
Electric Power: AC 240 V Single Ph, AC 440 V 3 Ph

Motorized Telescope offers a wide range of design options to suspend lighting fixtures in Studios, Production House, Film Institutions.

Product Features

- Telescope has horizontal manual movement and vertical movement motorized, control by switches provided on telescope wagon or operated by remote control.

- Designed with the highest standards of construction using MS and aluminium extruded square tubes duly powder coated in black matt texture finish and ease of installation for pay loads up to 75 kg.

- Ideal for the raising and lowering of lighting instruments up to 8mtr.

- 2 X 3.2mm dia anti-rotating GI ropes.

- Dynamic self locking worm-geared set motor.

- Two safety micro switches one for the top limit plus an extra emergency safety switch and one for the bottom limit plus an extra emergency safety switch.

- Manual bell to move the telescope up/down in case of emergency.

- Optional Emergency stop within 0.2sec, soft stop control also provided, emergency button on telescope wagon.

- Designed to meet CE standards.
