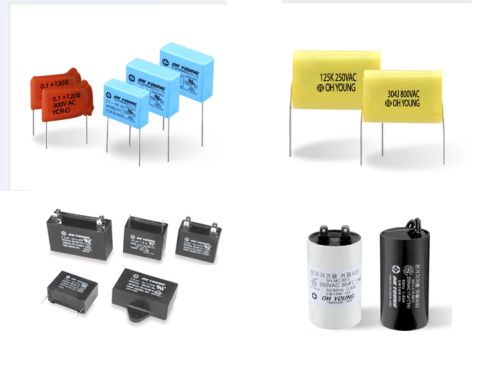

Contact SupplierWe are Offering Motor Running Capacitors.
•YMR type capacitors are the highest quality impregnated metallized polyesterPolyprpylene film capacitors. Their low cost and high quality are achieved through the application of metallized paper capacitor techniques to these impregnated metallized polyester film capacitors.
plus the standardization and full control of the automated manufacturing process from winding to testing of the final products.
Specifications
◦OPERATING TEMPERATURE: 25°C to +70°C+85°C
â—¦RATED VOLTAGE: 220, 250, 300, 350, 400, 450 VAC
◦TOLERANCE: ±5(J),±10(K),±10(U)
â—¦TEST VOLTAGE:
Terminal to terminal: 1.75 x rated voltage. 1min
Terminals to case: 2 x rated voltage + 1.000
VAC. 1min(1.500VAC min)
â—¦INSULATION RESISTANCE:
Terminal to terminal: not less than 1.000F.
Terminal to case: not less than 2.000M
◦DISSIPATION FACTOR: Max 0.35% at 20°C 60Hz
