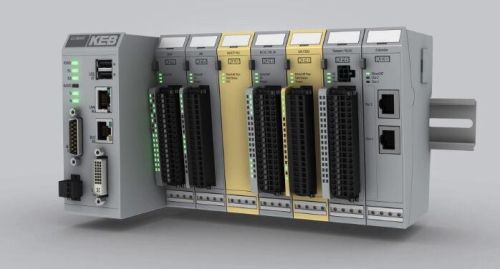

The compact IPC with modular EtherCAT I/O system for automating real-time applications DIN rail mounted. Optimised processor performance of the latest ARM generation for synchronous motion control and fast switching and detecting of output and input signals. The C6 SMART offers, with a width of 47mm and additional four I/O modules and under 150mm space on the DIN rail, a compact IPC control system with 128 in- and outputs.

The C6 SMART is designed for runtime environment and real-time capability. It allows control tasks that place high demands on performance and functionality, with the expectation to be cost-efficient. Detecting and switching of signals is realised without additional delay via the internal EtherCAT I/O module bus. Equipped with a multi-core processor, built-in Micro UPS, smart storage concept and many modular interfaces, C6 SMART is designed to handle all control system tasks.

•  EtherCAT
•  CoE Protocol Support for basic I/O and DS402 drives
•  Three display ports (DVI-I, Display Port, HDMI)
•  128 GB solid state drive (SSD)
•  Four 100/1000 Base T Ethernet ports
•  Two ports dedicated to Windows/Linux LAN
•  Two ports dedicated to Motion Core (i.e. one EtherCAT and one Modbus)Six USB ports with two of the ports USB 3.0 capable in the i7 version
• Two RS232/422/485 ports
• No fan or internal cabling
• Industrial aluminum casing
• Small form factor 10” × 6” × 2.7”, DIN-rail wall mount
• 9 – 36 VDC (+24 VDC @ 3 A) (Min 72 W) AT/ATX
• CE, UL, CCC, FCC, C-TICK, BSMI certiGed
• Two Mini PCIe Slots
