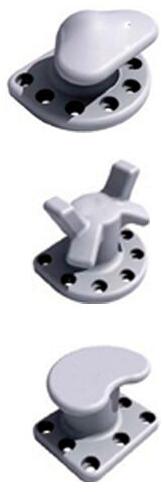

Contact SupplierTrelleborg bollards come in many popular shapes and sizes to suit most docks, jetties and wharves. Standard material is spheroidal graphite (commonly called SG or ductile iron) which is both strong and resistant to corrosion, meaning Trelleborg bollards enjoy a long and trouble free service life.
Â
The shape of Trelleborg bollards has been refi ned with fi nite element techniques to optimize the geometry and anchor layout. Even at full working load, Trelleborg bollards remain highly stable and provide a safe and secure mooring.
FeaturesBollard capacity (tonnes) | |||||||
---|---|---|---|---|---|---|---|
15 | 30 | 50 | 80 | 100 | 150 | 200 | |
A | 40 | 40 | 50 | 70 | 80 | 90 | 90 |
B | 235 | 255 | 350 | 380 | 410 | 435 | 500 |
C | 340 | 350 | 500 | 550 | 600 | 700 | 800 |
D | 410 | 450 | 640 | 640 | 790 | 900 | 1000 |
E | 335 | 375 | 540 | 550 | 640 | 750 | 850 |
F | 80 | 100 | 150 | 160 | 175 | 200 | 225 |
G | 155 | 175 | 250 | 250 | 325 | 350 | 375 |
ØI | 160 | 200 | 260 | 280 | 350 | 400 | 450 |
J | 205 | 225 | 320 | 320 | 395 | 450 | 500 |
K | 130 | 150 | 220 | 230 | 245 | 300 | 350 |
L1º | 30º | 30º | 30º | 15º | 10º | 10º | 0º |
L2º | - | - | - | 40º | 40º | 40º | 36º |
L3º | 60º | 60º | 60º | N/A | 80º | 80º | 72º |
Bolts | M24 | M30 | M36 | M42 | M42 | M48 | M56 |
Bolt length | 500 | 500 | 500 | 800 | 800 | 1000 | 1000 |
P* | 60 | 60 | 70 | 90 | 100 | 110 | 110 |
