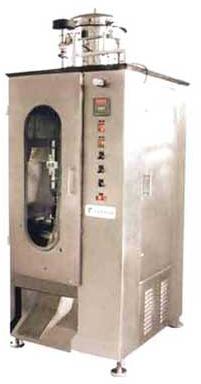

Model Cannon-1000-l Vertical Pouch Form Filling Machine

Listing ID #149119

Fully automatic mechanically operated vertical pouch form, fill & seal machine to pack 'free flow liquids' with float balance tank gravity flow controlled with electro magnetic filling system. Machine supported on heavy duty angular structure wrapped with stainless steel cabinet all contact parts are in stainless steel. Used For Packaging : Dairy MilkFruit juicesFruit pulpButter MilkFine yogurtSyrupNon aerated juices, etc. Specifications Feeding headFloat balance tank gravity flow controlledProduction Speed35-45 sachetsmin.Packing range250-1000 ml.Film Widthup to 325 mm.Film Thickness80 to 100 micron.Film MaterialCo-extruded poly film.Sealer heating systemImpulse only.Inner Core Dia. of Film Roll70mm.Outer Dia. of the film Rollup to 350mm.Pouch StyleCentre seal finover lap pillow pouch.Pouch Widthup to 150 mmPouch Lengthup to 240 mm.Power Consumption1.5 kW Hour.Peak Power3 kW.Power requirementSingle three Phase, 230415 V, 50HzPouch CounterProvided.Date printing DeviceOptional.Cooling water100 lthr @ 10oCMachine Dimensions2200 (H) x 920 (W) x 750 (D)Net Weight600 kgs (approx).
