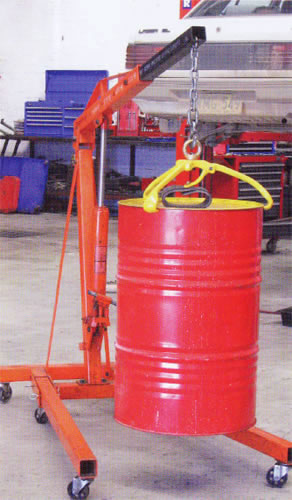

We are an Ahmedabad, Gujarat based Manufacturer and Supplier of very efficient Mobile Floor Crane. The Mobile Floor Crane provided by us is made using good parts & components hence, is very durable. Mobile Floor Cranes that we offer are tested to ensure that they continue to function flawlessly for a long time.
Specifications Of Mobile Floor Crane

• Capacity : 1000 kgs./2000 kgs / 3000 kgs .
• Min. Hook ht. : 500mm. .
• Max. Hook ht.: 2500 mm..
• Fork length :-2000 mm.
• Fork width : 1200 mm..
• Boom arm l : 1800 mm

• Structure : Base & vertical both made from heavy-duty m.s. channel & m.s. Flat construction.
• Structure strengthened at requisite points by means of gusset plates .
• Hyd. Unit : 1 no. Inclined mounted, single acting, honned hyd..
• Cylinder with hard-chrome plated piston, actuated by 1 no. Hyd..
• Hand operated pump.
• Wheels : 4 200 x 50 mm. size white virgin nylon wheels with double ball bearings.
• Front two wheels mounted on turn-table device; rear two wheels with fixed castor..
• Handle : 1 no. shape MS Pipe pulling handle.
• Paint : one coat of primer & two coats of auto-finish paint.
