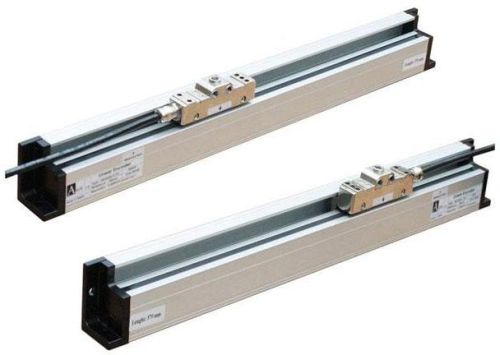

Mls1 Series Mlc310 Series Linear Magnetic Encoder System

Listing ID #404145

clients can avail from us mls1 series magnetic linear encoder system (+ b5 magnetic tape) that is designed by the experts. Made using the latest production methodologies, mls1 series magnetic linear encoder system is high in performance. Mls1 series magnetic linear encoder system can be availed at cost-effective price from us. We are a well-known name as mls1 series magnetic linear encoder system manufacturer, exporter and supplier in delhi (india). highlights

• high resolution up to 0,001 mm resolution
• sturdy metal case
• contactless and wear free system
• measuring lengths up to 100 meters
• resistant to humidity
• shielded metal enclosure
• protection class ip67
• easy mounting
• details
  • the purpose of these sensors is to in measure linear displacements on industrial machines or automation systems. High precision mls 1 system operates with incremental principle.
  • mls 1 system consists of mls 110 reader sensor and b5 or b2 magnetic tape. The reader sensor glides contactless over the tape, with a gap up to (maximum) 2, 5 mm.
  • applications
    • machining centers
    • pvc cutting machines
    • wood cutting machines
    • lathes, milling, drilling, grinding machines
    • sheet metal working machines
    • marble machines
    • welding machines
    • bending machines
    • electrical discharge machines
    • robotics material handling
    • glass working machinery
    • magnetic tape : b5, b2 & b1 b>power supply and output
      • ttl : 5vdc ± %5 power supply 5 vdc ttl rs422 line driver output
      • ppl : 24 vdc ± %20 power supply, 24 vdc push-pull output
      • option : 24 vdc ± %20 power supply, 5 vdc ttl rs422 line driver output
      • cable length
        • 3m : 3 meters
        • 5m : 5 meters
        • 8m : 8 meters
        • 10m : 10 meters(optional between 5m to 50m)
        • measuring stroke
          • optional, user defined
          • example: 300 : 300mm
          • resolution
            • 01 : 1μm
            • 10 : 10μm
            • 62 : 62,5μm
            • 100 : 100μm
            • 05 : 5μm
            • 25 : 25μm
            • 80 : 80μm
            • signal output type
              • 2 : a, b
              • 3 : a, b, z
              • 4 : a, a, b, b
              • 6 : a, a, b, b, z, z
              • z : standard, every 5 mm
              • sensor type
                • c : cable
                • s : shielded spiral
