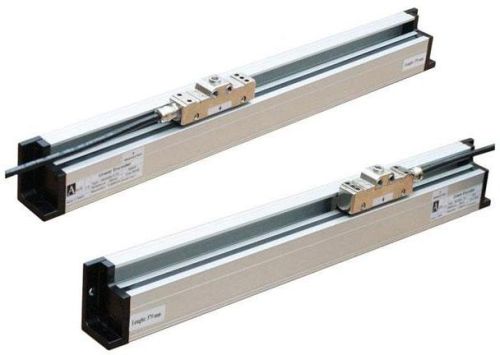

MLC410 Series Magnetic Linear Encoder System

Listing ID #1275030

Clients can avail from us the feature-packed MLC410 Series Magnetic Linear Encoder System. The MLC410 Series Magnetic Linear Encoder System that we offer is fabricated in compliance with the international quality standards. The MLC410 Series Magnetic Linear Encoder System can be availed at affordable price from us. We are a promiennr MLC410 Series Magnetic Linear Encoder System Manufacturer, Exporter and Supplier in Delhi (India).

• RS422 Differential Quadrature Output
• Excellent Stability of the Signals
• Contactless System
• Robust Shielded Metal Enclosure
• Fully Sealed, Protection Class IP67
• Resistant to Dirt, Humidity and Dust
• Withstands Shock and Vibration
• Single Reference Marker
• Compressed Air Inlet at the Scale End Blocks
• Double Protection Along the Sliding Side (Four Lip Seals)

• The large forces required in metal forming operations can provoke machine deformation which in turn puts strain on the linear encoder. This strain will affect the performance of the linear encoder and may lead to a reduction of accuracy or repeatability in the forming operation. In order to solve this problem is designed the MLC 410 incremental linear encoder, especially for press brake applications.
• Especially it is recommended for applications with a measuring length of up to 2040 mm in high speed and high vibration environments and small places. The special design of the mounting points minimizes accuracy errors due to temperature changes. On the other hand, the MLC 410 series includes a special support that further improves it behavior against the vibrations caused by the machine.
• The reader head of this linear encoder has a connector. The linear encoder is supplied as a pre assembled unit. The linear encoder and reader sensor are connected to the aluminum support and it can be connected directly

• TTL : 5VDC ± %5 Power Supply 5 VDC TTL RS422 Line Driver Output
• PPL : 24 VDC ± %20 Power Supply, 24 VDC Push-Pull Output
• HTL : 24 VDC ± %20 Power Supply, 5 VDC TTL RS422 Line Driver Output

• 3M : 3 Meters
• 5M : 5 Meters
• 8M : 8 Meters
• 10M : 10 Meters(Optional Between 5m to 50m)

• Optional, User Defined
• (Several Standard Lengths from 50mm to 20.000 mm)

• 01 : 1μm
• 10 : 10μm
• 62 : 62,5μm
• 100 : 100μm
• 05 : 5μm
• 25 : 25μm
• 80 : 80μm

• 2 : A, B
• 3 : A, B, Z
• 4 : A, /A, B, /B
• 6 : A, /A, B, /B, Z, /Z

• L : Left
• R : Right

• C : Cable
• S : Spiral
