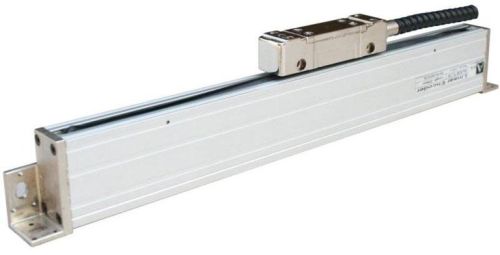

Mlc310 Series Linear Magnetic Encoder System

Listing ID #404144

we are mlc310 series magnetic linear encoder system manufacturer, exporter and supplier based in delhi (india). We manufacture mlc310 series magnetic linear encoder system in compliance with the industry set norms. The mlc310 series magnetic linear encoder system, offered by us, is technologically advanced and thus, high in demand. highlights

• contactless and wear-free system
• high tolerance to shock and vibration
• measuring lengths of up to 20 meters
• resistant to dirt, humidity and dust
• requires no cleaning or maintenance
• robust shielded metal enclosure
• protection class ip67
• compact design
• details
  • the encoder forms a compact unit. The scanning unit is guided within the housing along scale.
  • long life linear motion guide system. The scale, scanning unit and guide are protected against contamination by an aluminum extrusion and elastic sealing lips.
  • the coupling elements between the scanning carriage and transfer web are designed to transfer motion in the measuring direction only.
  • pitch or other motion of the connecting web in a direction perpendicular to measurement is compensated without affecting accuracy.
  • mlc 310 series linear encoders are mainly used in
    • lathes, milling, drilling, grinding machines
    • sheet metal working machines
    • welding machines
    • bending machines
    • roboticsmaterials handling
    • marble machines
    • wood cutting machines
    • pvc profile cutting machines
    • glass working machinery
    • magnetic tape : b5, b2 & b1 power supply and output
      • ttl : 5vdc ± %5 power supply, 5 vdc ttl rs422 line driver output
      • ppl : 24 vdc ± %20 power supply, 24 vdc push-pull output
      • htl : 24 vdc ± %20 power supply, 5 vdc ttl rs422 line driver output
      • cable length
        • 3m : 3 meters
        • 5m : 5 meters
        • 8m : 8 meters
        • 10m : 10 meters
        • measuring stroke
          • optional, user defined
          • (several standard lengths from 50mm to 20.000 mm)
          • resolution
            • 01 : 1μm
            • 10 : 10μm
            • 62 : 62,5μm
            • 100 : 100μm
            • 05 : 5μm
            • 25 : 25μm
            • 80 : 80μm
            • sensor type
              • c : cable
              • s : spiral
              • measurement stroke (mm)resolution5μm, 10μm, 25μm, 62.5μm (or on request)output typepush-pull or ttl rs422 line driveroutput signalsa, a, b, b, z, zinput currentmaximum 40 ma per channelpower supplyppl: 10.30 vdc or ttl: 5 vdchousing materialsensor: nickel plated aluminum scale profile : anodized aluminumelectrical connectionmax. 50 m cablemagnetic tape pole length5 mm, 2 mm, 1mmtravel velocity3 msrepeatability± 1 pulseoperating temperature-25 to +85protection classip67
