Junior Lab Solutions

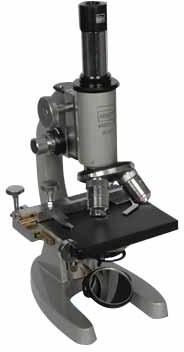

The MJ 900 is Traditional Horse shoe base microscope, with body inclinable, through 90 degrees, a standard tube length of 160 mm. Separate coarse and fine focusing knobs, with graduation on one side. Incorporating a unique centering & parfocalising mechanism, giving the user the freedom to enhance the performance with due regard to specimen & microscope parameters.
| STAND | Traditional Horse shoe base, with body inclinable through 90° |
|---|---|
| NOSEPIECE | Quadruple revolving Nosepiece |
| VIEWING BODIES | Standard tube length of 160 mm |
| MECHANICAL STAGE | Fixed Stage size 120 x 120 mm with Mechanical stage for x and y movement of slide upto 25 x 75 mm with graduated scales and verniers |
| CONDENSOR | Fitted with sub-stage condenser N.A.1.2 and Iris diaphragm, moving up and down through rack & pinion |
| FOCUSING SYSTEM | Separate coarse and fine focusing knobs with graduation |
| ILLUMINATION | Illumination is provided through a plano-concave mirror mounted on gimbal mount |
| EYEPIECES | Huygenian Eyepieces: H6x-H10x-H15x(Any Two) |
| OBJECTIVES | Achromatic Objectives : 10x-40x(SL)- 100x(SL) Oil Immersion |
| ACCESSORIES | Packed in thermocol box, dust cover with manual. Optional wooden cabinet with lock & key |
