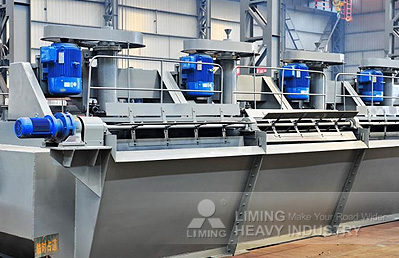

Flotation Machinery

Listing ID #4354144

Get Latest Price

TypeMining benefit teams
Input Size0.3m³/min
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The flotation cell is driven by a motor triangular substituting transmission when impeller rotates,on the one hand, suction sufficient air is mixed with the slurry, on the other hand, stir the....

View More Details

Send Enquiry

Product Details

The flotation cell is driven by a motor triangular substituting transmission when impeller rotates,on the one hand, suction sufficient air is mixed with the slurry, on the other hand, stir the slurry mixed with the drug while refinement of the foam, make the mineral adhesive above of the foam. To adjust the height of the gate and to control of the liquid level are the useful ways for foam scraper by being scraped off.
Features
1. High inhalation, low power.
2. Each chute can inhale gas, sink magma, separate.
3. There is no need of accessory equipments horizontal equipment, it is easy to change the flow chart.
4. The cycling way of magma is very reasonable, it can reduce the impurities to a great extent.
5. There is automatic equipment on the magma surface, it is easy to adjust.
6. The upward one makes the magma cycle toward upward, which the downward one makes the magma cycle downward.
Working Principle
The flotation cell is driven by a motor triangular substituting transmission when impeller rotates,on the one hand, suction sufficient air is mixed with the slurry, on the other hand, stir the slurry mixed with the drug while refinement of the foam, make the mineral adhesive above of the foam. To adjust the height of the gate and to control of the liquid level are the useful ways for foam scraper by being scraped off.
Processed Materials :
Flotation machinery can separate colored and ferrous metal mineral, and those non-metals such as fluorite, talc can also be processed by this machine. Flotation machinery takes advantages of outstanding performance, easy adjusting and good stability.

Applications :
The machine can be used to separate nonferrous metal, ferrous metal, noble metal, nonmetallic mine, chemical material and recycle mine

Model	Volume (m3)	Capacity (m3/min)	Impeller dia (mm)	Impeller revolution (r.p.m)	Air pressure of blower (KPa)	Max of air Filling (m3/m2)	motor power (kw)
Model	Volume (m3)	Capacity (m3/min)	Impeller dia (mm)	Impeller revolution (r.p.m)	Air pressure of blower (KPa)	Max of air Filling (m3/m2)	Impeller	Scraper
KYF-1	1	0.2~1	340	281	≥12.6	2	4	1.1
KYF-1.2	1.2	0.2~1.2	410	247	≥12.8	2	7.5	1.1
KYF-2	2	0.4~2	410	247	≥14.7	2	7.5	1.1
KYF-3	3	0.6~3	480	219	≥19.8	2	7.5	1.5
KYF-4	4	1.2~4	550	200	≥19.8	2	11	1.5
KYF-8	8	3~8	630	175	≥21.6	2	15	1.5
KYF-16	16	4~16	740	160	≥25.5	2	30	1.5
KYF-24	24	4~24	800	150	≥30.4	2	30	1.5
KYF-38	38	10~38	880	138	≥34.3	2	37	1.5
