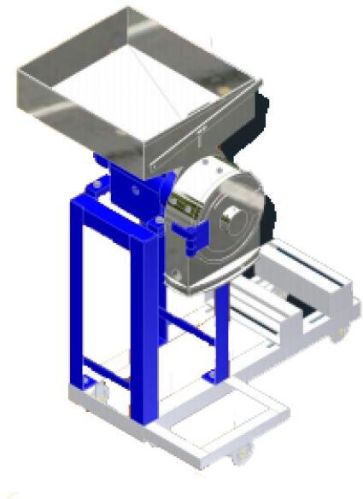

Contact SupplierTechno wings brand mini pulveriser is made from specially selected materials. The beater are interchangeable and reversible thus, the pulveriser will last for a life time with minimum replacement of parts. Mini pulverizer is Made from Cast Iron body. Grinding Chamber lined with serrated wear plates, which protects the body from wear and tear. Grinding done by a set of swinging four numbers inter changeable and reversible beater on a balanced rotor which is fitted on a shaft. Shaft is fixed with a suitable deep groove ball bearings which is continuously lubricated by oil. This shaft is run by driven pulley and A screen classifier forms the lower half of the grinding chamber.
Standard Accessories of Mini Pulverizer
Extra Accessories of Mini Pulverizer
Model No. | IMM-MP-4 | IMM-MP-5 | IMM-MP-6 |
Chamber Size (Ø=Diameter X Width) | Ø200mm x 75mm | Ø250mm x 100mm | Ø300mm x 150mm |
Pulverizer's RPM | 4500 to 6000 | 4500 to 6000 | 4500 to 6000 |
Motor HP (Kw.) | 2 Hp (1.5 Kw) or 3 Hp (2.2 Kw) | 5Hp (3.7 Kw) or 7.5Hp (5.6 Kw) | 7.5 Hp (5.6 Kw) or 10 Hp (7.5 Kw) |
Fineness Range | ---- | 2 to 100 B.S.S. Mesh | ---- |
