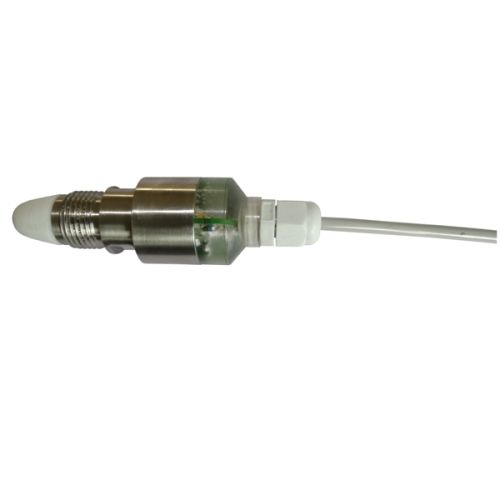

Mini Point Level Switch

Listing ID #2656181

SMARTsaa offers mini point level switch for effective sensing of plastic granules in hopper. This switch is provided with coat guard circuit which makes it immune for sticky deposition on the sensor face. This unique feature is first time added in small housing of capacitive proximity switch.
Switch provided with teach function. User can teach the switch not to sense when small dust is deposited on the sensing face.
Same sensor can be used for sensing level of liquid, powder, plastic granules
The switch works on capacitance principle. When material comes in front of the switch, the dielectric constant changes and when specific level reaches, the switch operates and output signal is produced.
Specification:
Series : SMARTsaaMCPS
Power Supply : 10-30 V DC, three wire type
OP : PNP or NPN
Load Current : 100 mA
Repeatability : + - 2 mm
Enclosure : Stainless Steel
Operating Temp : 60 Degree Cent
Various enclosures are available considering specific requirement, please consult factory
