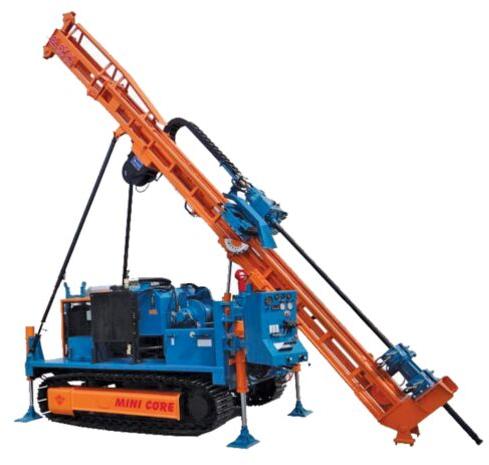

Mini Core Drill

Listing ID #4571312

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The comprehensive range of Mini Core Drill offered by us finds application in water wells, mineral exploration, core drilling, and reverse circulation. Manufactured as per the set industry norms, these drills are known for their high functionality. These are necessary for the speedy and effective work as the drill is powered by Perkins diesel engines.

View More Details

Send Enquiry

Product Details

CAPACITY	BQ - 350mtr NQ - 300mtr HQ - 200mtr
PRIME MOVER	Power for the Hydraulic is taken from the Suitable Deck Engine
MAST & SPEED SYSTEM	Two speed Rotary Head powered by Hydraulic Motor gear type fixed displacement High speed low Torque - 1000 rpm @ 300 Nm Low Speed High Torque - 75 rpm @ 1000 Nm
LEVELLING JACKS	4 Nos lug mounted jacks provided for leveling with pilot operated check valve
WATER PUMP	A separate engine driven triplex single acting water pump having flow capacity of 250 litres per minute and maximum pressure of 25 Kg/Cm2 is included
FOOT CLAMP	Hydraulic operated indigenous foot clamp
BREAK OUT WRENCH	The hydraulic operated rigid break out wrench provided for easy breaking of rod joints and foot clamp for core drilling rods
MAIN WINCH	Single line capacity - Bare drum 3000 Kgs Bare Drum Speed - 45 Mtrs / Minute Cable Size - 16 mm of 15 Mtrs length
WIRE LINE WINCH	Capacity - 500 Mtrs of 4.76 mm rope Line pull - Bare Drum 1200 Kgs Line Speed - Bare Drum 90 Mtr / Minute

Company Details

PRD RIGS Founded in 1972, under the leadership of Mr. T. P. Thangaraj, Chairman of PRD groups, is a leading manufacturer of drilling and Exploration Rigs. PRD expanded their export division, Paranthaman Exporters and have exported over 350 rigs to various countries worldwide.We have been awarded with Regional Export Awards , from the Government of INDIA, for outstanding export performance consecutively from the year 2005 to 2014. Since the demand for our rigs in the African continent has grown considerably and spread in 30 countries. We have established our Sales & Service in Kenya, South Africa & Ghana and these outlets are besides our dealership network in Ethiopia, Nigeria, Australia, Malaysia, Brazil, Mexico, Srilanka, Jordan, Dubai, Oman and network will continue.
Today, as the market demand is growing for the mining and construction equipment, The company has began to diversify its efforts by developing and manufacturing a wide range of drilling machinery for the mineral exploration and geotechnical markets. Applications - Water Well drilling rig, Pilling rig, Geotechnical rig, Blast Hole Rig, Core Drilling Rig, Reverse Circulation rig and other Customized rigs.
