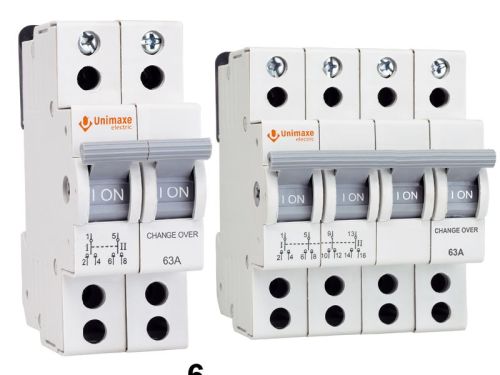

Mini changeover switch

Listing ID #4327368

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Features: Compact Construction Double break contacts Silver cadmium oxide contact tips Shrouded terminals Front Operation with three stable positions Isolator at middle position Easy snap on DIN....

View More Details

Send Enquiry

Product Details

Features:

Compact Construction
Double break contacts
Silver cadmium oxide contact tips
Shrouded terminals
Front Operation with three stable positions
Isolator at middle position
Easy snap on DIN Rail mounting
Can be mounted with other products
viz. MCB, ELCB, Isolator in Distribution Board
Construction:
The entire switching mechanism along with the fixed and moving contact assembly are housed in FR thermo plastic moulded case / cover, having high dielectric stength, excellent mechanical & thermal properties. The switching mechanism is double break type.

The contact tips are made of Silver cadmium oxide (AgCdO) for long electrical life, sustained current carrying capacity and ensure temperature rise is within specified limits.

Standard Conformity		: IEC 947-3/IS 13947-3
No. of Poles(Execution)		: 2 Pole, 4 Pole.
Rated Current (In)	A	: 25, 40.
Rated Voltage (Ue)	V	: 240ac /415 ac.
Rated Frequency	Hz	: 50
Rated Insulation Voltage	V	: 660
Dielectric Strength	kV	: 2.5
Rated impulse voltage	kV	: 6
Utilization Category		: AC 21A
Ambient Temp.	C	: -5 to +55
Mechanical life		: 10000 operations
Electrical life		: 10000 operations
Mounting		: Standard (35x7.5)mm
Mounting Position		: Vertical / Horizontal
Terminal Capacity mm2		: 10
Weight Double Pole	gms	: 134
Four pole	gms	: 268
