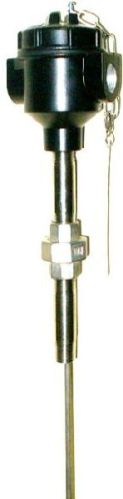

Mineral Insulated Resistance Temperature Detector

Listing ID #3975219

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

A Resistance Temperature Detector (RTD) senses heat, based on the principle, that a change in temperature, results in a corresponding change in the resistance of a wire. A small excitation current is passed along the element, the resultant voltage is measured and converted to units of temperature. RTDs have achieved a well deserved reputation in various Industries for their superior stability and accuracy. The result makes these devices well suited for a wide variety of applications.

View More Details

Send Enquiry

Product Details

Element	1 x Pt100 or 2 x Pt100( Simplex or Duplex). ( Any other like Pt 1000, Pt 46 etc on request.)
Range	0 to 500 Deg C
Sheath OD	3.2mm,5mm, 6mm,8mm ( Any other size on request)
Sheath Material	SS316, as Standard, SS316L, SS321 on request
Insulation	Compact Mgo ( Over99% Purity) for Metal sheathed Type and Ceramic for Beaded Type
Calibration STD	IEC-751/DIN 43760( Class A or B)
Conductor	Copper for MI type and Silver only for Beaded type, Nickel for MI type on request.
Configuration	2 Wire, 3 Wire, 4 wire
Open End	Pot Seal, Plug & Jack, Terminal Block with SS Disc
Head	Die Cast Aluminium, SS304,SS316 (Simplex/Duplex) with one or two cable entries.
Protection	Weatherproof to IP 67 Flameproof IIA, IIB as per IS/IEC:60079-1:2007. Flameproof IIC as per IS/IEC:60079-1:2007.
Cable Entry	¾" ET, ½" NPT, ¾" NPT( Any other on request)
Extension	Nipple Union Nipple assembly In Cd plated Cs,SS304,SS316( Any other on request) Minimum 100 mm but 150mm as a standard .( Any other on Request) : Adjustable Gland( NPT,BSP,) ( Any other on request) In SS304,SS316( Any other on request) : Nipple 75mm/100mm long as standard, any other on request : In Cd plated Cs, SS304 ,SS316 as standard, ( Any other on request)
Process Connection:	½", ¾" as standard.( Any other on request)
Accessories	Single/Double Compression Cable Gland in Ni Plated Brass, SS304, SS316( Any Other on Request) : Metallic Plug for Head in Aluminium, SS304, SS316( Any other on Request)
Optional	Can be provided with Head/ Remote Mounted Transmitter Can Be provided with all types of Thermowell
NOTE FOR BEADED TYPE OF RTD : Resistance Temperature Detectors with Conductors of Silver, in Ceramic Beaded Construction , and packed with MgO powder and encapsulated in a sensing Metallic Tube in SS316.(Any other material on request) can be supplied

Company Details

Welcome to M/s Goa Instruments Industries Pvt . Ltd. Established by Mr. M. T Kulkarni, it is a family owned company. He is a Mechanical Engineer with over 42 years of experience of manufacturing process control instruments for measurement of Temperature, Pressure, Flow, Level & Instrumentation Valves.
With “GOA INSTRUMENTS” customer has the option of buying all primary process control instruments in range of TEMPERATURE, PRESSURE and FLOW in one single basket. We are the leaders in manufacturing various types of Resistance Temperature Detectors, Thermocouples, Temperature Gauges, Pressure Gauges and Thermowells for Industrial applications like Sugar, Power, Oil, Gas, Petrochemical, Fertilizers and many other process Industries.
The company has many sets of excellent mechanical processing equipments and modern inspection and testing equipments for our products. A-State-of-the-Art manufacturing facility, continuous Research & Development, innovative technology & stringent quality control at every stage have been some of the key factors in the manufacturing of our products.
We are not only the manufacturer but the solution providers. We have built world class reputation of total understanding of customers requirements and needs, thus delivering excellent products and services at competitive prices. Qualified members of our team are engaged in customizing newer solutions to solve problems, striving for improvement. For us, commitment and integrity are valued the most, which reflects in the philosophy of achieving total customer satisfaction.
