Salient Features
Standard Accessories
Optional Accessories

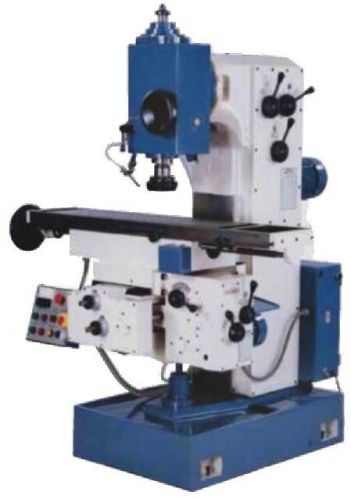

| Specification | Unit | Universal / Horizontal Milling Machine | Vertical Milling Machine | ||
|---|---|---|---|---|---|
| TABLE | SU-3S / SH-3S | SU-4S / SH-4S | SV-3S | SV-4S | |
| Table overall size | mm | 1550 x 310 | 1900 x 350 | 1550 x 310 | 1900 x 350 |
| Table clamping area | mm | 1350 x 310 | 1600 x 350 | 1350 x 310 | 1600 x 350 |
| No./width of 'T' slots | mm | 45001 | 45003 | 45001 | 45003 |
| Center distance between 'T' Slots | mm | 65 | 80 | 65 | 80 |
| Longitudinal movement - power | mm | 975 | 1200 | 975 | 1200 |
| Longitudinal movement - manual | mm | 1000 | 1300 | 1000 | 1300 |
| Cross traverse - power | mm | 290 | 330 | 290 | 330 |
| Cross traverse - manual | mm | 300 | 350 | 300 | 350 |
| Vertical Movement - power | mm | 400 | 400 | 400 | 400 |
| Vertical Movement - manual | mm | 425 | 425 | 425 | 425 |
| MILLING SPINDLE | |||||
| Spindle nose taper | - | ISO - 40 | ISO - 50 | ISO - 40 | ISO - 50 |
| Quill Movement | mm | - | - | 100 | 100 |
| Swivel of milling head | Degree | - | - | 45 | 45 |
| SPEEDS | |||||
| Speed | steps | 18 | 18 | 18 | 18 |
| Speed range | rpm | 35 - 1800 | 35 - 1800 | 35 - 1800 | 35 - 1800 |
| FEEDS | |||||
| Feed | steps | 20 | 20 | 20 | 20 |
| Feed range Longitudinal & Cross | mm / mm | 16 - 800 | 16 - 800 | 16 - 800 | 16 - 800 |
| Feed range Vertical | mm / mm | -620820 | -620820 | -620820 | -620820 |
| *RAPID TRAVERSE | |||||
| Longitudinal & Cross | mm / min | 3200 | 3200 | 3200 | 3200 |
| Vertical | mm / min | 800 | 800 | 800 | 800 |
| POWER | |||||
| Spindle Motor | kW / HP | 5.5 / 7.5 | 7.5 / 10 | 5.5 / 7.5 | 7.5 / 10 |
| Feed Motor | kW / HP | 2.25 / 3 | 44989 | 2.25 / 3 | 44989 |
| OVERALL SIZE | |||||
| Maximum length | mm | 1880 | 2340 | 1880 | 2340 |
| Maximum width | mm | 2060 | 2310 | 2060 | 2310 |
| Maximum Height | mm | 1830 | 1855 | 2210 | 2340 |
| WEIGHT | |||||
| Net approx. | kg. | 3150 | 4200 | 3150 | 4200 |
| Gross approx. | kg. | 4000 | 5000 | 4000 | 5000 |
Electric Discharge Machines (EDM) of the highest calibre are our area of expertise at JK MACHINES in Delhi. We provide cutting-edge solutions to meet the varied needs of our clients in the industrial industry thanks to our expertise and dedication to quality.
We are dedicated to meeting the exact machining demands of our clients by offering durable and efficient Electric Discharge Machines. Modern technology is used in the development of our equipment, guaranteeing high levels of precision, productivity, and durability.
Customized Solutions:
We are aware that every production procedure has unique needs. As a result, we provide our customers with customised solutions that are specially designed and produced to meet each customer's individual demands. In order to develop solutions that are precisely created to boost productivity and efficiency, our knowledgeable staff works closely with customers.
Exceptional Service:
We work hard to provide excellent service, offering prompt and trustworthy assistance at every turn, from product selection to installation and after-sales support. Our friendly and knowledgeable team is ready at all times to assist clients and ensure that their needs are met with the highest professionalism.
Industry Expertise:
Our team of experts is very informed and talented in electric discharge machining and has years of experience in the field. We keep abreast of the most recent industry trends, allowing us to offer cutting-edge solutions that fulfil the shifting needs of our clients.
Nature of Business
Manufacturer / Exporter / Supplier
Number of Employees
20 - 50
Year of Establishment
2008
