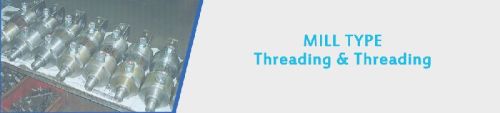

    Mill Type Threading Hydraulic Cylinder

    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    FEATURES ROD SCREW THREAD, NON-TOLERANCED DIMENSION,POSITION AND SIZE OF THE CONNECTIONS ETC, CAN BEIMPLEMENTED ACCORDING TO CUSTOMER PREFERENCE SINGLE AND DOUBLE ROD DESIGNS HARD CHROME....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 8 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    FEATURES
    • ROD SCREW THREAD, NON-TOLERANCED DIMENSION,POSITION AND SIZE OF THE CONNECTIONS ETC, CAN BEIMPLEMENTED ACCORDING TO CUSTOMER PREFERENCE
    • SINGLE AND DOUBLE ROD DESIGNS
    • HARD CHROME PLATED ROD WHICH INCREASE THE SEAL & CYLINDER LIFE MODERNISTIC SEALING TECHNOLOGY
    • IDEAL FOR SINGLE ACTING & DOUBLE ACTING APPLICATIONS
    • A WIDE RANGE OF FLUID SPECIFICATIONS AND TEMPERATURE RANGES FROM -20°C TO 60°C
    • CUSHIONING SOLUTIONS & ADJUSTMENT OF THE CUSHION LENGTHS AVAILABLE AT EITHER OR BOTH ENDS
    • WIDE RANGE OF MOUNTING AND ROD END ACCESSORIES SPECIAL FEATURES, E.g. STROKE ADJUSTER, ROD BELLOW, GLAND DRAIN, PROXIMITY SWITCHES OR INTEGRATED LINEAR TRANSDUCERS.
    APPLICATIONS



    • Lifting
    • Roll Mills
    • Paper Machinery
    • Cement Industry
    • Factory Automation
    • Metal forming
    • Packaging Machinery
    SPECIFICATIONS



    GENERAL SPECIFICATIONS

    • Maximum Working Pressure (bar) 240
    • Bore Diameter (mm) Min 50 to Max 200
    • Rod Diameter (mm) Min 32 to Max 140
    • Maximum Stroke (mm) 5000
    • Minimum Working Temperature (C) -20
    • Maximum Working Temperature (C) 140
    • Mounting Styles 5 Cylinder Action Single/Double Acting
    • Port Type BSP, Metric.

    NPT MATERIAL SPECIFICATIONS

    • Cylinder Barrels Carbon Steel Alloy
    • Pistons Carbon steel alloy
    • Rods High quality alloy steels with tensile strength
    • Base Castings & Rod Clevises High Tensile structural steel
    • Cylinder Heads High Tensile structural steel
    • Guiding bushes Brass, Bronze alloys
    • Seals Polyurethane, Pom-Ptfe-Bronge compound, Ptfe, NBR, VITON
