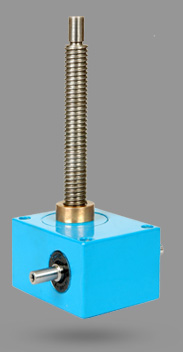

Cubical Worm Gear Screw Jacks CWJ Series

Cubical Worm Gear Screw Jacks CWJ Series

Listing ID #2660393

Get Latest Price

MaterialMild Steel
ApplicationMachinery Use
ColorBlue
FinishingPainted
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Material Mild Steel
Application Machinery Use
Color Blue
Finishing Painted
Feature Corosion Resistant, Longer Working Life, Rugged Structure
Lifting Capacity 300-400kn

We are a high-flying name in this arena and thus, strive hard to deliver the best in class products to the clients. Also, we source the basic material from the reliable places. For the utmost customer satisfaction, we are flexible in delivering the product range at the place agreed by the customers and that too in the set time.
Product Details :

CUBICAL Model CWJ series.
13 Different Sizes in CWJ series.
Lifting Capacity 5 to 100 kN in CWJ.
Drive Motor Speed upto 1500 rpm.
Worm Gear in two different ratios, slow and fast.
Top & Bottom Guide Bushes for Lifting Screw.
Worm Wheel hobbed for optimum blue contact.
Oil or grease lubricated.
Oil Seals for Worm and Worm Wheel.
All 6 Sides machined.
Easy fitting of Motor Flange.
Can be used in Upright or Inverted position.

Materials of Construction :

Worm Shaft Case carburized Steel, hardened and ground thread profile.
Trapezoidal Screw Shaft Cr-Mo Steel, hardened & tempered.
Housing Alloy aluminum for 5 and 10 kN, all higher sizes in SG Iron.
Worm Wheel and travelling nut in Aluminium Bronze.

Cubilcal Worm Gear Screw Jack CWJ 0.5 To CWJ 100

Cubical worm gearbox Type	Standard Cubical Worm Gearbox CWJ
Nominal size, CWJ	0.5		1		2.5		5		10		20		25
Max lifting Capacity, kN	0.5		10		25		50		100		200		250
Lifting screw Tr	18x3		20x4		30x6		40x7		55x9		70x10		80x10
Normal N, Slow L	N	L	N	L	N	L	N	L	N	L	N	L	N	L
Ratio	5:1	20:1	10:1	30:1	10:1	30:1	10:1	30:1	10:1	30:1	10:1	30:1	10:1	30:1
Lift per turn	0.6	0.15	0.4	0.13	0.6	'0.20	0.7	0.23	0.9	0.3	1	0.33	1	0.33
Total efficiency, at ratio	'0.243	0.15	0.3	0.17	0.26	0.17	'0.234	0.16	'0.225	'0.153	0.21	0.14	0.19	'0.126
Screw efficiency	0353		0.4		0.4		0.365		0.35		0.32		0.29
Screw torque at max liftng capacity, Nm	6.76		15.9		59.8		152.6		411		1007		1390
Worm torque at max lifting capacity, at ratio Nm	1.98	0.78	2.47	1.22	9.26	4.59	23.6	11.71	63.7	31.6	156	77.3	215.3	106.7
Max permissible torque at worm shaft, Nm	8.5		20.5		92		195		195		318		318
Weight without lifting screw, push rod and protection tube, kg	1.8		6		6.5		18		35		56		63
Weight per 100 ,, pf screw, push rod and protectiontube, kg	0.16		0.22		0.5		0.9		1.8		2.8		3.7

Cubilcal Worm Gear Screw Jack CWJ 0.5 To CWJ 100

Cubical worm gearbox type	Standard Cubical Worm Gearbox CWJ
Nominal size, CWJ	35		40		50		60		80		100
Max lifting capacity, kN	350		400		500		600		800		1000
Lifting screw Tr	90x10		100x12		120x16		120x6		140x14		160x16
Normal N, Slow L	N	L	N	L	N	L	N	L	N	L	N	L
Ratio	10:1	30:1	10.67:1	32:1	10.67:1	32:1	10.67:1	32:1	12:1	36:1	12:1	'36:1
Lift per turn of worm, at ratio,mm	1	0.33	1.12	0.38	1.5	0.5	1.5	0.5	1.17	0.39	1.33	0.44
Total efficicency, at ratio	0.17	0.12	0.18	0.12	0.19	0.13	0.19	0.13	0.14	0.09	0.14	0.09
Screw efficicency	0.262		0.278		0.3		0.3		0.24		0.24
Screw torque at max lifting capacity, Nm	2129		2752		4236		5084		7400		10572
Worm torque at max lifting capacity, at ratio Nm	330	164	401	200	618	307	741	369	1045	569	1493	813
Max permissible torque at worm shaft, Nm	840		1960		1960		1960		4220		4220
Weight without lifting screw, push rod and protection tube, kg	110		180		180		180		380		380
Weight per 100 mm of screw, push rod and protection tube, kg	4.6		5.6		8		8		11		14

Ordering Example 01

Thrust Ton	KN	Model MCJ
0.5	5	CWJ 0.5
1	10	CWJ 1
2.5	25	CWJ 2.5
5	50	CWJ 5
10	100	CWJ 10
15	150	-
20	200	CWJ 20
25	250	CWJ 25
35	350	CWJ 35
40	400	CWJ 40
50	500	CWJ 50
60	600	CWJ 60
80	800	CWJ 80
100	1000	CWJ 100

Accessories

Hand Wheel	HW
Hand Crank	HC
Limit Switch	LS
Bellow Boots	BB
Swivel Base	SB
Motor Flange	MF
Anti Back lath	AB
Anti Turn	AT
Anti Back lash + Anti Turn	AB+ AT
Trunion Plate	TP
