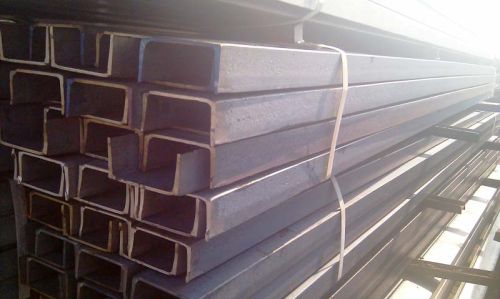

Contact SupplierWe offer our clients a wide range of Mild Steel Channels widely used in different industrial applications. Our range of Mild Steel Channels is highly demanded by various industries as they possess certain features such as longer functional life and corrosion & abrasion resistance. Further, our Mild Steel Channels provides excellent load bearing strength, which makes them more demanding across the globe. These Mild Steel Channels are also available by various names UPN Channels, TFC Channels, PFC Channels, Iron Channel, C Channels, U Profiles, and Metal Post C Shape. Light Channels. Features
Rolling Tolerances
Web | Up to 20mm ± 2.5mm Above 200mm ± 3mm |
Flange | Up to 200mm ± 2mm |
Sectional Weight | ± 2.5%MTR |
Length | For fixed length : ± 100mm |
Chemical Composition
Chemistry | Unit | IS 2062, Fe 410W A |
Carbon | % | 0.23 Max |
Manganese | % | 1.50 Max |
Sulphures | % | 0.045 Max |
Phosphorus | % | 0.045 Max |
Carbon Equivalent | % | 0.42 |
Mechanical Properties
Mechanical Properties | Unit | Dia/Thickness (mm) | IS 2062, Fe 410W a |
Yield Stress | N/mm2 | <20 20-40 >40 | 250 min 240 min 230 min |
Tensile Strength | N/mm2 | - | 410 min |
Elongation | % | 23 min | 24 min |
