Microprocessor trainer kits

Listing ID #3653577

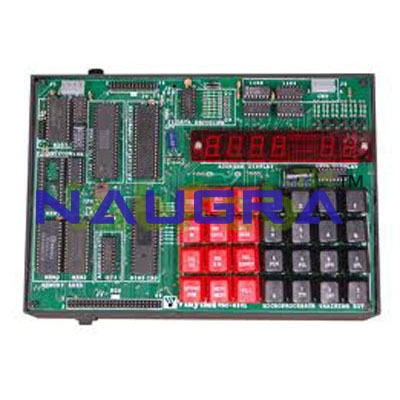

Microprocessor Training Kit With Inbuilt Power Supply For Electrical Lab Training.
8085 Microprocessor Training Kit With Inbuilt Power Supply Based on 8085 CPU operating at 6.144 MHz crystal frequency 8K bytes of EPROM loaded with powerful monitor program Total on board memory expansion upto 64K bytes using 27322764271286264 62256 with 1 socket of 28 pin. Battery back up for RAM with 3.6V rechangeable cell. Memory mapping definable by the user. 16 bit programmable TIMERCOUNTER using 8253. 24 IO lines provided through 8255 22 IO lines provided through 8155 RS-232C interface through SIDSOD Lines withAuto baud rate. Two modes of commands: - Hex Key pad mode & - Serial mode All address, data & control lines are buffered and made available at the edge connector as per STD bus configuration. 2528 key hexadecimal keyboard and six seven segment displays through 8279 Powerful software commands like Relocate, String, Fill, Insert, Delete, Block Move, ExamineCompare Memory, Examine Register, Insert Data, Delete Data, Single Step, GO, Break Point in both Serial & Keyboard mode. Facility for DownloadingUploading files fromto PC. In-Built power supply:+5V1.2A User's Manual.
