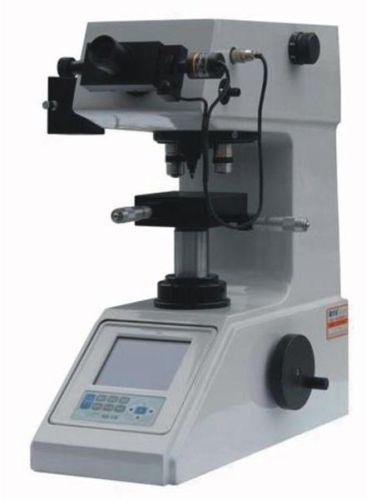

Micro Vickers Hardness Tester

Micro Vickers Hardness Tester

Listing ID #1397613

Get Latest Price
  • Objective Magnification10X, 40x
  • TurretAutomatic turret shifting between penetrator & object lens
  • Weightapprox. 40Kg
  • Depth of throat110mm
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

VMC Instruments verified-icon
Ambegaon, Pune, Maharashtra
View Number
  • Member Since 12 Years
  • Nature of Business Retailer
  • GST No. 27BBVPK2962A1ZI

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Weight approx. 40Kg
  • Turret Automatic turret shifting between penetrator & object lens
  • Magnifications of the measuring system 400X, 100X
  • Max. Height of test piece 75mm
  • Min. measuring unit 0.025µm
  • Dimensions 470 x 320 x 500mm
  • Depth of throat 110mm
  • Eye Piece 10x
  • Test Force 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N (10, 25, 50, 100, 200, 300, 500, 1000gf
  • Power Supply 220V/110V AC, 50Hz
  • Objective Magnification 10X, 40x
  • Hardness measuring range 5-3000HV
  • Resolution of Micrometer 0.01 um

Features

  • Built-in printer
  • RS232 interface
  • High resolution and high brightness LCD display


Main accessories

  • Coordinate anvil : 1 pc.
  • Thin shaft anvil : 1 pc.
  • Thin plate anvil : 1 pc
  • Flat nose pliers : 1 pc
  • .Large V-notch anvil : 1 pc.
  • Small V-notch anvil : 1 pc.
  • Diamond pyramid penetrator : 1 pc.
  • Micro-Vickers standardized block : 2 pcs.


Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

VMC Instruments is proud to introduce itself as an eminent name in the field of material testing machines. We manufacture and Supply Digital Hardness Tester with automatic hardness measurement. Our company has achieved excellence by developing unique image processing technique for impression measurement. Our mission is to set a new benchmark in the field of Material Testing with constant research & development.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
  • Number of Employees Below 20
  • Year of Establishment 2008
