Contact SupplierMain application:
Â

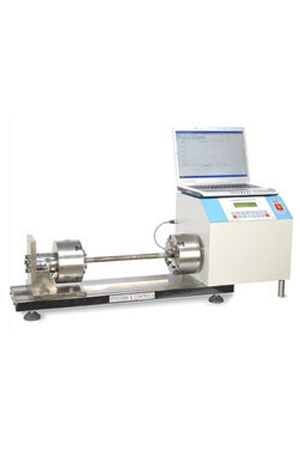

This testing machine uses computer controlled japanese AC servo system and is loaded through the active clamping head driven by the AC servo motor and cycloidal pinwheel redution motor.The torque and torsion angle are measured with high precision torque transducer and photoelectric encoder.computer will dynamically display the test torsion curve,loading speed peak value and so on.
Â
It is mainly used for the torsion test of mental and non mental materisls as well as the torsion test for parts and components.. It is an essential instrument to measure torsion properties of materials for mechanic laboratories of aviation industry.construction industry scientific resarch dept universities or industrial enterprises.
Â
Main functions and featuresÂ
Â
Loading mode :- we use imorted AC servo motor and driver testing of torque and torsion angle High precision symmetrical torque transducer for torque testing and high precision photoelectric encoder for angle testing
Â
operation :- Manual control and computer control WINDOWS based software to calculate mechanical indexes of materials.Auto process test data Dynamically display testing curve,store andd print the testing results. Operator can intervene in the analysis process and thus improve the accuracy of test results.
Item name | specifications |
Max test torque (N.m) | 500/1000/2000Nm |
Relative error of torque indications | <+_ 1% from 20% of each full range |
Relative repeatability error of torque indications | <+_ 1% from 20% of each full range |
Loading speed | 1 /min 360 /min |
Max.Reading of torsioin angle (o) | 9999.9 |
Distance between two clamping heads | 0-500mm |
