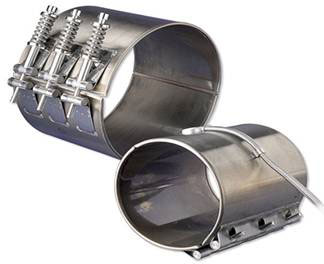

220V Mica Band Heaters, for Industrial Use, Packaging Type : Packet

Listing ID #473352

We are a well reckoned entity in making available a wide range of high performance Mica Band Heaters. We fabricate Mica Band Heaters using quality raw material at our own facility. Long life, Uniform heat transfer, Energy efficiency, etc., are some of the highlights of our Mica Band Heaters. We are proficient in making Mica Band Heaters as per your requirements of Holes, Terminal type, Mounting methods and special cut-outs. Construction : Mica Band heaters are manufactured from Nickel Chrome resistance ribbon precisely wound on Mica or Micanite sheet. It is then insulated and enclosed by metal sheathing and finally rolled uniformly to the required shape. Features

• Top Quality Nickel Chrome ribbon.
• Rust resistant Sheath.
• Superior heat transfer & uniformity.
• Max. Operating temperature up to 300 ^oC
• Excellent dielectric strength.
• Most economical.
• Max. 3.6 watts/cm²

Available In

• Common square
• Rectangular
• Hex-shaped

Applications

• Plastic Processing Machinery.
• Rubber machinery.
• Blown film.
• Injection and Blow Moulding.
• Extruders & Many other applications.

Types of Terminals

• Protected fiberglass Wires with G.I or SS flexible conduct
• 12" Lead or Post Terminals.
• Junction Box
• Ceramic connectors Max. Amp - 25 A.
• Vertical/horizontal male plug on the heater Max. Amp 16 at 250V.

Ordering Details

• Internal diameter. & width of the heater.
• Wattage & Voltage
• Construction type
• Type of terminals required.
• Drawing where special type of holes or cutout required.
