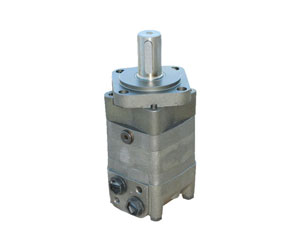

MHS Hydraulic Test Motor

Listing ID #4331424

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

MHS Series have a spool valve: the distribution valve is integrated in the output shaft. The cardan shaft thus rotates the distribution valve and mechanical enegry from the generator set to the output shaft.

View More Details

Send Enquiry

Product Details

Type MHS	80	100	125	160	200	250	315	400
Displacement [ml/r]	80.5	100.5	126.3	160.8	200.9	252.6	321.5	401.9
Max. Pressure Drop [Mpa]	17.5	17.5	17.5	16	16	12.5	12.5	10
Max. Torque [Nm]	194	242	303	358	438	440	551	560
Speed Range [cont.][r/min]	10-810	10-750	9-600	7-470	6-375	6-300	5-240	5-180
Max. Output Power [cont.][kW]	14	16	16	14	14	11	10	8

Company Details

S.S. HYDRAULICS is an ISO 9001:2008 certified company. Having the brand of MERBOK. Produces Hydraulic Gear Pumps, Cast Iron Gear Pumps, Hydraulic Hand Pump, Hydraulic Mini Power Packs (AC & DC) Cylinders, and Automotive Water Pumps, and Precision Machined Components for Many OEMS, SINCE THE YEAR 2000,
S.S. HYDRAULICS (MERBOK) also having Distribution Division of Hydraulic Parts like Hydraulic Motors, Hydraulic Steering Units, Hydraulic Control Valves, which is imported from across the Globe and distributing in India under the brand of MERBOK.
MERBOK – Has customer across the globe and mainly in Europe
For Agricultural Equipments, we have wide range of hydraulic pumps replacement parts for the Tractors like
FIAT, DEUTZ, STEYR, EBRO, IH, ZETOR, LANDINI, FENDT, MESSY FERGUSON, SAME, JOHN DEERE AND MORE… we have more than 200 different types of pumps for Agricultural Machinery ( pls contact to Export Manager on exports@merbok.in )
The company's state – of- art manufacturing facilities including imported CNC, VMC, SPM, GEAR HOBBING & GEAR SHAVING, CNC Angular Grinding Machine with MARPOSS (Italy) Online Process Gauges. All Machines incorporates the largest process technologies & is designed for production flexibility. We carrying 100% Performance Testing with record and endurance test also doing periodically in DUST PROOF ASSEMBLY ROOM Hence, MERBOK able to meet varied customers needs,
With range of over 200 different types of hydraulic pumps with displacements of 1.2cm³/rev. to 154cm³/rev, max. pressure of 250 bar. pumps are produced in Aluminimum. And Cast Iron Metals,
The applications include Agricultural Tractors, construction Equipments, Material Handling, Earth Moving Equipment, Mining, Drilling equipments, Dumber & Road Paving.
