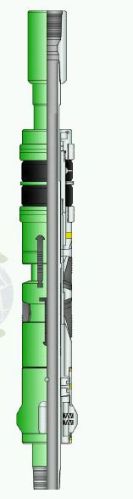

WC-MECH-3L Mechanical Double Grip Lok-set Retrievable Packer

Listing ID #4131160

Get Latest Price

MaterialMetal
ApplicationIndustrial, Mechanical
ConditionNew
Machine TypeMechanical Packer
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Material Metal
Application Industrial, Mechanical
Condition New
Machine Type Mechanical Packer
Warranty 1 Year
Model No. WC-MECH-3L

It is a general purpose packer for production, injection, zone isolation or remedial operations. It holds pressure from above or below while allowing the tubing to be placed in tension, compression or in a neutral condition. This is a Full-Bore Double-Grip Retrievable Packer with an integral un-loader. Opposed non-transferring dovetail Slips prevent movement of the Packer in either direction due to pressure differentials, while allowing landing of the tubing in tension, compression or neutral. The Lock segments serve as a releasable Lock Ring to maintain pack-off once the packer is set, and locks the un-loader in the closed position until the tool is released. The split Lock and Control Segments allow the tool to be set and released with right-hand rotation. The Retrievable Lok-Set Packers are compression set retrievable packers.

Benefits :

Internal by-pass.
Opposed dovetail slips positive set.
Holds pressure from above or below.
Can leave tubing in a tension, compression or neutral condition.
Right hand rotation sets and releases the packer.
Retracted dovetail slips.
Converts to mechanical bridge plug with the addition of a valve.
Optional packing element systems.
Parts interchangeable with other manufacturers.

Applications :

Production.
Injection.
Zone isolation operations.

Note : The Model- WC-MECH-3L Lok-Set Packer is similar to the Model- WC-MECH-3 packer and is recommended when a larger than normal bore through the packer is required.

Specification Guide

Casing			Packer
SIZE in /mm	Weight Lb/ft	MAX. ID in/mm	Min. ID in/mm	OD in Mm
SIZE in /mm	Weight Lb/ft	MAX. ID in/mm	Min. ID in/mm	OD in Mm	ID / in / mm	End Connection Specification Box Up & Pin Down in
5.1/2 139.7	20-23	4.625 117.48	4.778 121.36	4.500 114.3	2.375 60.30	2 7/8 EU 8RD
	17-20	4.778 121.36	4.892 124.26	4.641 177.88
	13-15.5	4.950 125.73	5.190 131.83	4.781 121.44
5.3/4 146.05	22.5	4.893 124.83	5.044 128.12	4.781 121.44
6 152.4	26	4.893 124.83	5.044 128.12	4.781 121.44
6.625 168.3	20	5.989 152.12	6.094 154.79	5.812 147.62	3.000 76.20	3 1/2 EU 8RD
6.625 168.3	17	6.136 155.85	6.276 159.41	5.968 151.59
7 177.80	32-35	5.989 152.12	6.094 154.79	5.812 147.62
	26-29	6.136 155.85	6.276 159.41	5.968 151.59
	20-26	6.276 159.41	6.456 163.98	6.078 154.38
	17-20	6.456 163.98	6.578 167.08	6.266 159.16
7 5/8 193.7	33.7-39	6.579 167.11	6.765 171.83	6.453 163.91
	24-29.7	6.766 171.86	7.025 178.44	6.672 169.47
	20-24	7.025 178.44	7.125 180.98	6.812 173.02
