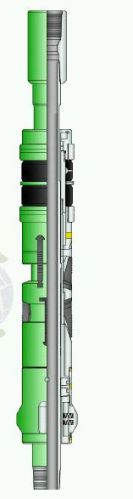

Contact SupplierIt is a general purpose packer for production, injection, zone isolation or remedial operations. It holds pressure from above or below while allowing the tubing to be placed in tension, compression or in a neutral condition. This is a Full-Bore Double-Grip Retrievable Packer with an integral un-loader. Opposed non-transferring dovetail Slips prevent movement of the Packer in either direction due to pressure differentials, while allowing landing of the tubing in tension, compression or neutral. The Lock segments serve as a releasable Lock Ring to maintain pack-off once the packer is set, and locks the un-loader in the closed position until the tool is released. The split Lock and Control Segments allow the tool to be set and released with right-hand rotation. The Retrievable Lok-Set Packers are compression set retrievable packers.
Benefits :
Applications :
Note: The Model: WC-MECH-3L Lok-Set Packer is similar to the Model: WC-MECH-3 packer and is recommended when a larger than normal bore through the packer is required.
Casing | Packer | |||||
Size in mm | Weight Lb/ft |
Min. ID in mm |
Max. ID in mm |
OD in mm | ID in mm | End Connection Specification Box Up & Pin Down in |
5 127.0 |
15-18 | 4.250 107.95 |
4.408 111.96 |
4.125 104.78 |
1.978 50.20 |
2 3/8 EU 8RD |
11.5-15 | 4.408 111.96 |
4.560 115.82 |
4.250 107.95 |
|||
5 1/2 139.7 |
26 | |||||
20-23 | 4.625 117.48 |
4.778 121.36 |
4.500 114.30 |
|||
15.5-20 | 4.778 121.36 |
4.950 125.73 |
4.641 117.88 |
|||
13-15.5 | 4.950 125.73 |
5.190 131.83 |
4.781 121.44 |
|||
6 152.4 |
26 | 4.950 125.73 |
5.190 131.83 |
|||
20-23 | 5.191 131.85 |
5.390 136.91 |
5.062 128.57 |
|||
15-18 | 5.391 136.93 |
5.560 141.22 |
5.156 130.96 |
|||
6 5/8 168.3 |
34 | 5.561 141.25 |
5.609 142.47 |
5.406 137.31 |
||
24-32 | 5.610 142.49 |
5.921 150.39 |
5.484 139.29 |
|||
17-24 | 5.992 150.42 |
6.135 155.83 |
5.781 146.84 |
2.441 62.00 |
||
24 | 5.830 148.08 |
5.937 150.80 |
5.656 143.66 |
1.978 50.20 |
2 7/8 EU 8RD | |
17-20 | 5.938 150.83 |
6.135 155.83 |
5.812 147.62 |
2.441 62.00 |
||
7 177.8 |
38 | 5.830 148.08 |
5.937 150.80 |
5.656 143.66 |
||
32-35 | 5.938 150.83 |
6.135 155.83 |
5.812 147.62 |
|||
26-29 | 6.136 155.85 |
6.276 159.41 |
5.968 151.59 |
|||
23-26 | 6.276 159.41 |
6.366 161.70 |
6.078 154.38 |
|||
17-20 | 6.456 163.98 |
6.578 167.08 |
6.266 159.16 |
|||
7 5/8 193.7 |
33.7-39 | 6.579 167.11 |
6.797 172.64 |
6.453 163.91 |
||
24-29.7 | 6.798 172.67 |
7.025 178.44 |
6.672 169.47 |
|||
20-24 | 7.025 178.44 |
7.125 180.98 |
6.812 173.02 |
|||
9 5/8 244.48 |
47-53.5 | 8.343 211.9 |
8.681 220.5 |
8.218 208.74 |
3.500 88.90 |
3 1/2 EU 8RD |
40-47 | 8.681 220.5 |
8.835 224.4 |
8.437 214.30 |
|||
29.3-36 | 8.836 | 9.063 | 8.593 |
