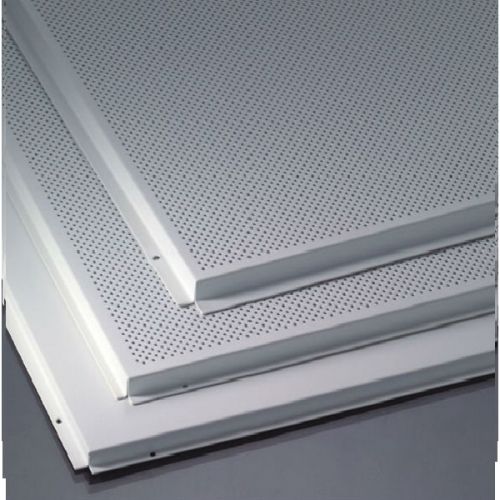

Clip-in false ceiling system with steel tile (600 mm x 600 mm) is manufactured out of 0. 50 mm thick regular modified polyester coated galvanized steel (z-120/180 gms total zinc coating mass of both sides, 240 mpa yield stress). These tiles can have square or beveled edges. It is available in matt finish on the exposed side and a primer coating on the back. Then the tile has 20-micron polyester coated finish and back coat of 5-micron alkyd primer. The rigid suspension system consists of rows of 0. 5 mm galvanized steel clip-in profiles installed at 600 mm c/c spacing to support the tiles. Suspension angles are suspended from the roof structure by gi ceiling brackets. They are joined to the clip-in profiles by hold-on clamps. The tiles / planks are held in place by pressure clips.
