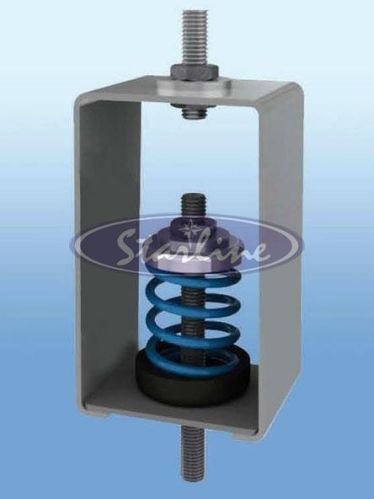

Power Coated Metal Spring Hanger (50 mm), Length : 0-25inch

Listing ID #1369874

We are into the business of manufacturing, exporting and supplying excellent grade Spring Hanger (50 mm) with 50 mm standard deflection. Our Spring Hanger is used for isolation of vibration produced by suspended mechanical equipment, low speed suspended fan, transformers, ductwork, piping, etc. Spring Hanger that we offer is especially recommended for isolating any suspended source of audible or inaudible noise and vibration with minimum static deflection requirement exceeding 25 mm and up to 50 mm. Moreover, bulk quantities of our Spring Hanger can be obtained at very affordable rates from us.
Conforms To

• Designed to BS 1726 1: 1987
• Tolerance to BS 1726 1: 2002
• SAE and Ashrae Guidelines for vibration Isolation

Features

• Spring Diameter to height ratios are designed to ensure that spring will never buckle even when fully loaded.
• Suspension rod misalignment (30 degree arc) is compensated in hanger design.
• Locking rubber bush centralizes the spring and prevents dislocation.
• Springs are powder coated with appropriate color coding to facilitate identification.
• Frame is made of G.I. Steel and powder coated to 100 microns paint thickness (exceeds 1000 hours of salt spray test) and conforming to ASTM B-117.
• Isolation brackets are capable of overloading upto 500%.

Option

• Frame Hot dip Galvanized. Part Number Prefix with "HDG".
• Spring Neoprene Coated. Part Number prefix with "N".
• Spring Plastic Dip coated. Part Number prefix with "P".
• Spring Hangers of higher capacity and Deflection shall be Engineered as per Specific Requirements. Nomenclature for special Engineered spring hangers shall be SSH (XXX-Deflection G (XXXXX-Load)

Selection / Ordering : Point load (Calculated to include all variables such as weight of water in pipe lines etc if applicable).
Installation Guide Lines : Included in Packaging.
