Metal Rigid Couplings, for Industrial

Listing ID #3090429

700 - 2.40 Lakh / Set

Get Latest Price

MOQ 1 Set(s)
TypeRigid
MaterialMetal
UsageIndustrial
NoiseNoiseless operation
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Type Rigid
Material Metal
Usage Industrial
Noise Noiseless operation
Resistivity Corrosion & Chemical resistant
Feature Precise operations, Durable, Dimensional accuracy, Precise design

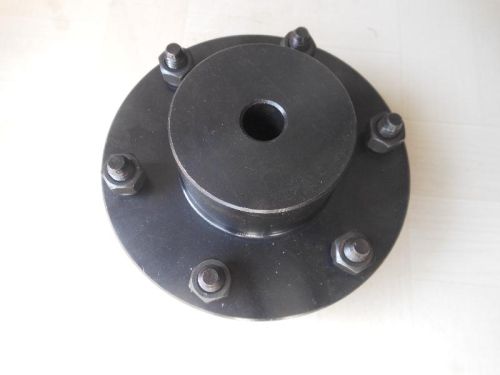

Flexitech rigid coupling. Designed for use in system where misalignment is neither present nor desired. These coupling offer an easy and cost effective method for a shaft or adapting between two different shaft sizes.
Features :

Due to rigid connecting no lubrication is required.
Their high torque capabilities make them suitable for higher rpm power transmission applications.
No moving part hence noiseless operation.
They are torsional stiff and backlash free.
Largest finish bores in both sides.

Specifications

SIZE	MAX. RPM	Torque NM	Finish Bore		ØA	ØB	C	D	G	L	Weight KG	Bolt Size & No. of Bolt
SIZE	MAX. RPM	Torque NM	Min	Max	ØA	ØB	C	D	G	L	Weight KG	Bolt Size & No. of Bolt
FRC 100	8000	375	10	50	120	70	45	15	3	93	4	M10 X 6
FRC 101	6300	850	20	60	170	90	55	17	5	115	11	M12 X 6
FRC 102	5000	1250	30	75	185	110	70	17	5	145	15	M12 X 6
FRC 103	4000	2500	40	90	220	130	85	20	5	175	26	M16 X 6
FRC 104	3350	3500	50	110	250	160	105	20	5	215	40	M16 X 8
FRC 105	2800	5200	60	130	290	185	110	25	10	230	62	M18 X 8
FRC 106	2800	8350	75	150	320	215	125	25	10	260	86	M18 X 8
FRC 107	2100	9840	90	170	350	240	140	25	10	290	110	M18 X 10
FRC 108	1900	15000	105	200	380	285	155	25	10	320	140	M18 X 10
FRC 109	1700	19500	125	220	430	315	165	25	10	340	200	M24 X 12
FRC 110	1400	23900	140	260	490	370	180	25	10	370	270	M24 X 12

Graph

Download Detail File : Click Here

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Product Images

Company Details

FLEXITECH INDUSTRIES is one of the prominent names engaged in the manufacturing and exporting of high quality couplings such as Flexible Gear Coupling, Pin Bush Coupling, Muff Coupling, Nylon Gear Coupling, Star (jaw) Coupling, Brake Drum Geared Coupling, Brake Drum with Flexible Geared Coupling, tyre coupling, rigid coupling, chain coupling, gear coupling, Grid Coupling, Pulley, sprocket, shaft, gears & worm gear, worm shaft, power transmission component, other precision machine components. As per drawing as per sample.
