Mechanical Gas Vent Pumping Packer, for Industrial

Listing ID #4127479

Get Latest Price

MaterialMetal
Warranty1 Year
Machine TypeMechanical
ConditionNew
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Material Metal
Warranty 1 Year
Machine Type Mechanical
Condition New
Application Mechanical, Industrial
Model No WC-GVP

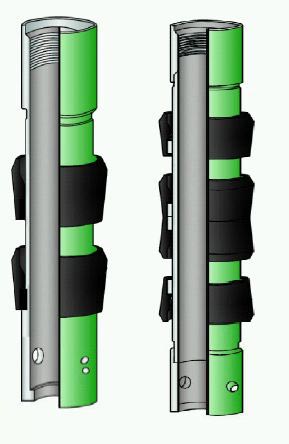

Gas Vent Pumping Packer offers an inexpensive option for isolating casing leaks or depleted perforations in pumping wells. This tools prevents gas lock by allowing gas to vent to the surface past damaged zones. The interval between top and bottom cups can be of required lengths. Available with double or multiple cups.
Benefits :

Inexpensive alternative to squeeze job.
Variable intervals easily adjusted.
Optional double to multiple cups.

Specification Guide

Casing		Tubing Size	Liner Thread Connection Size	Packer
Size	Weight	Tubing Size	Liner Thread Connection Size	Max. OD	Min. ID
inch	Lb/ft	inch	inch	inch	inch
4 1/2	9.5-13.5	2 3/8	3" Line Pipe	3.813	2.69
5 1/2	13-20	2 3/8	3" Line Pipe	4	2.75
5 1/2	13-20	2 7/8	3 1/2" Line Pipe	4.625	3.13
7	20-29	2 7/8	4 1/2" LTC	5.000	3.13

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

WELLCARE OIL TOOLS PRIVATE LTD., a privately held company, engaged in Design, Manufacture and supply of a comprehensive range of highest quality Downhole Drilling & Production Oil Tools for the Oil & Gas Industry comprising Hydraulic / Mechanical Set, Rotating & Non-rotating Liner Hangers, Mechanical & Hydraulic Permanent & Retrievable Seal Bore / ERD Packers & Accessories , Float Shoes & Collars, Stage Cementing Collars, Wireline set & Retrievable Bridge Plugs, Cement Retainers, Milling & Retrieving Tools, Cementing Heads, Centralizers and Stop Collars at its new plant located at Alwar (Rajasthan), India.
The Company has all the quality systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure that WELLCARE products match the highest quality & reliability Standards similar to any International major in this field. A well-established Quality System from Materials receipt to Products delivery ensures consistent quality at all levels of the activity. The required inspection and test facilities are installed in house. The company complies with all the legal, statutory and regulatory requirements.
The facility is equipped with latest machining facilities like CNC 3-axis Turning centers, CNC 4-axis milling center, Center Lathe Machines, Deep Hole Drilling, Boring & Honing Machines enabling the Company to meet its production target. Design Department is equipped with CAD facilities and have on rolls qualified & experienced engineers and have been engaged in development of new products as required in the market place.
WELLCARE has furnished Downhole Oil tools in several metallurgical configurations for service in different geologies to Indian Public Sector Companies as well as Private Operating Companies. WELLCARE offers services of qualified and experienced engineers for customer training, running & redressing of its manufactured & supplied products in On-Shore and Off-Shore Oil & Gas Wells. We have fairly extensive range of satisfied Customers.
We believe in Quality and customer satisfaction is our main motto. We are committed to timely supply of Quality Products & Services at competitive prices by PDCA approach for Continual Improvement in our Manufacturing Processes.
