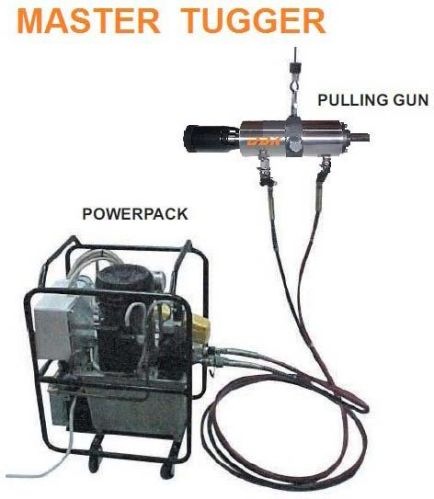

Master Tugger Hydraulic Tube Puller that we offer is manufactured using quality approved components and highly advanced techniques under the strict vigilance of experts. It is tested on various quality parameters so as to ensure that only defect-free product reaches the customers’ end. We are one of the prominent Manufacturers and Suppliers of Hydraulic Tube Puller. It can be obtained from us at the best market price.
Features :
Simple and robust operation.
Very little taining of the operator needed. Set up in less than a minute.
High pressure pump for pulling toughest jobs.
Compact and lightweight gun and powerpack.
Removes tube without damage.
Low Set Up time / ease of operation.
Available with choice of electric / Pneumatic operation.
Automatic switchover from low pressure to high pressure.
Interchangeable pulling gun accessories compatible with existing systems on the market.
Single man operation.
| Model | Volts / Phase | Power Hp |
Oil Tank Capacity | Net wt | Dimension | Hydraulic hose Size X Length |
|---|---|---|---|---|---|---|
| MTPP -300 | 230 / single | 3 | 10 | 68 | 510 x 370 x 680 | 1/4” x 5 Twin Jack Hose |
| Model | Pulling Capacity Tons |
Max. Tube O.D Thru Gun. inch |
Stub Pulling Capacity** inch |
Weight Kg lbs. |
Free Pulling Speed Meter / minute |
|
|---|---|---|---|---|---|---|
| MTPG -15 | 15 | 1 | 1.1/2 | 18 | 40 | 3.3 |
| MTPG -30 | 30 | 1.1/2 | 3 | 25 | 55 | 2 |
| MTPG -45 | 45 | 3 | 4 | 51 | 112 | 1.3 |
