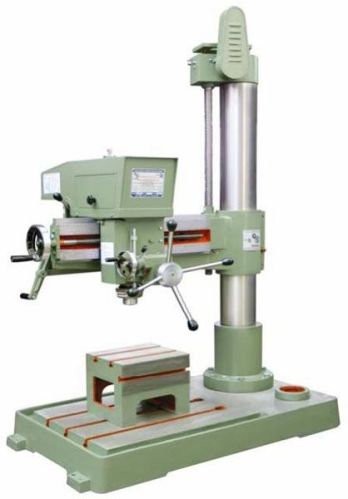

Contact SupplierGet in touch with us for excellent quality Heavy Duty Radial Drilling Machines! We are a nonpareil Manufacturer, Supplier and Exporter of Radial Drilling Machines. The Radial Drilling Machines we make available undergo strict quality-tests before the final dispatch. Buyers are free to place bulk orders of the Machines with us and we ensure their timely execution.
Some Important Features :
Main spindle made from EN steel with 6 slots in machined by hobbler and Morse taper bore is provided internally grinded
By Simple adjustment of only tapper wedge facility to set drill head on are guide way. Spindle sleeve is properly guided in honed drill head bore on 6 ball & roller bearing for smooth & accurate running
One piece arm provides high rigidity along with accuracy.
Drilling Capacity |
|
Drilling (M.S.) |
50mm |
Drilling (C.I.) |
60mm |
Tapping (M.S.) |
56mm |
Tapping (M.S.) |
70mm |
Boring (M.S.) |
90mm |
Boring (C.I.) |
110mm |
Drilling Head |
|
Spindle Tapper |
MT-5 |
Spindle Travel |
325mm |
No. of spindle speed |
12 |
Range of spindle speed |
40 to 1700 RPM |
No. of spindle feeds |
6 |
Range of spindle feed |
0.12 to 1.2 mm/rev. |
Spindle Diameter |
81.2mm |
Electrical |
|
Power Supply |
4.8 HP 415V 50 HZ |
Drilling Power |
4.8 HP |
Arm Elevating Motor Power |
2 HP |
Coolant Pump Motor Power |
0.15 HP |
Working Range |
|
Column Dia. |
350mm |
Drilling Radius Max./ Min. |
1500 / 530mm |
Distance from column to spindle Max./ Min. |
1325 / 355mm |
Distance from base to spindle Max./ Min. |
1450 / 385mm |
Max. Drilling Head Travel |
970mm |
Base plate working area (L.W.) |
1490 x 910mm |
Box table area |
600 x 500 x 500mm |
Dimensions |
|
No. Of T-slot |
3 |
Wooden case size |
2810 x 1280 x 2983mm |
Approximate weight |
3500 KG |
