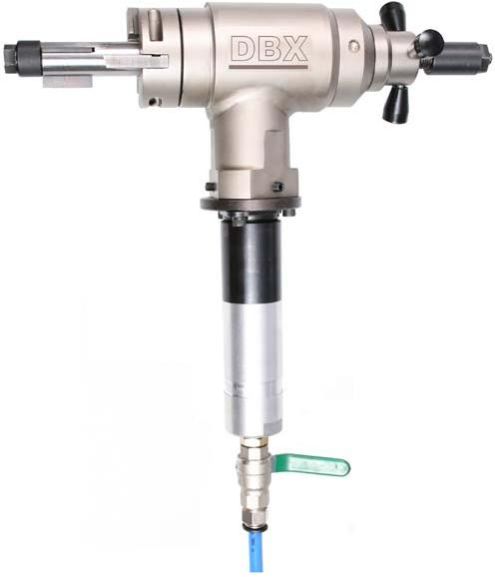

Our FM-3000 Tube End Facer is reckoned as one of the most powerful machines used on boiler tubes. The company is a reliable Manufacturer, Supplier and Exporter of FM-3000 Tube End Facers from Maharashtra. The modular and ergonomic design of our Tube End Facer makes it very popular among buyers. In order to suit a wide range of diameters, our Tube End Facers allow quick interchangeability of locking jaws.
| Details | Pneumatic | Electric |
| Locking Range mm (inch) | 28 – 76 (1.1/8” - 3”) | 28 – 76 (1.1/8” - 3”) |
| Idal Speed RPM | 110 | 75 |
| Torque Nm (lbf.ft) | 56 (41.30) | 82 (60.48) |
| Feeding Stroke mm (inch) | 40 (1.9/16”) | 40 (1.9/16”) |
| Pneumatic Power HP | 0.70 | - |
| Air Consumption cfm | 34 - 36 | - |
| Air Pressure Bar (psi) | 6 (90) | - |
| Electric Power watts | - | 900 |
| Voltage V | - | 110 / 220 V |
| Net Weight kg (lb) | 8.0 (17.63) | 9.0 (19.84) |
