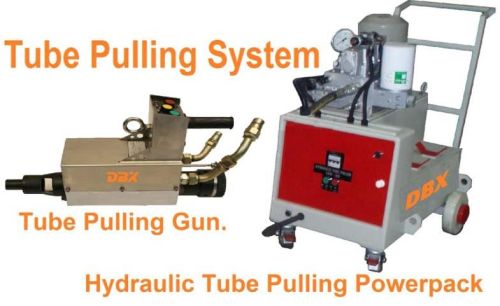

Metal Continuous Hydraulic Tube Puller

Listing ID #1250783

Contact us for excellent quality Continuous Hydraulic Tube Pullers at market-leading rates. We are an established Manufacturer, Supplier and Exporter of Continuous Hydraulic Tube Pullers from Maharashtra. The entire range of the Hydraulic Tube Pullers is manufactured in compliance with set industrial norms. Strict quality-tests ensure that only defect-free Hydraulic Tube Pullers reach the buyers. Bulk orders of the Tube Pullers are processed by us as per the specific requirements of the buyers.
Features of Continuous Hydraulic Tube Puller

• Hydraulic Tube Pulling gun communicates with power pack via 9v DC remote control. This ensures safety and eliminates the need of electrical cord between pump and gun that other manufacturers provide.
• Available with a choice of Electric-TPP System or Pneumatic-PPP System for hazardous, explosive working environments.
• Microprocessor controls on power pack and hydraulic tube pulling gun ensure trouble free life.
• Removes tube without any damage to tube sheet.
• Low setup time and ease of operation.
• High power & High speed automatic cycling, for highest speed of tube puller available worldwide.
• Auto switchover from low pressure high flow to high pressure low flow on load and again back to low pressure high flow when load is released.
• Automatic slow start feature to minimize risk of breaking tube puller and to conserve consumables.
• Compact design of Power pack and Hydraulic Tube Pulling Gun.
• Interchangeable tube pulling guns with same power pack. 15 ton gun for light duty high speed work, 30 ton gun for heavy duty tube puller and 45 ton gun for tubes upto 3” O.D.
• Stainless steel construction body of power pack for longer corrosion free life.
• Hydraulic Tube Pulling up to 3” OD tubes continuously, Tube Puller up to 4” O.D. stub.
• Low maintenance cost and worldwide availability of components of the Stub Puller.
• Significant saving of time and money over conventional systems.
• Unit is portable with handle and mounted on four wheels for easy handling.
• Unit will pull tube continuously through the gun effortlessly, needing only one man for operation.

Tube Puller Power Pack - Specifications

• Sizes Available for Tube Puller Power Pack : 3/8" O.D. TO 4" O. D.
• Models Available for Tube Puller Power Pack : TPP-50, PPP-50 (Pneumatic)

Hydraulic Tube Puller Guns - Specifications

• Sizes Available for Hydraulic Tube Pulling Gun : 3/8" O.D. TO 4" O. D.
• Models Available for Hydraulic Tube Pulling Gun (TPP) : HPG-15, HPG-30, HPG-45.
