METACENTRIC HEIGHT APPARATUS
DESCRIPTION:-

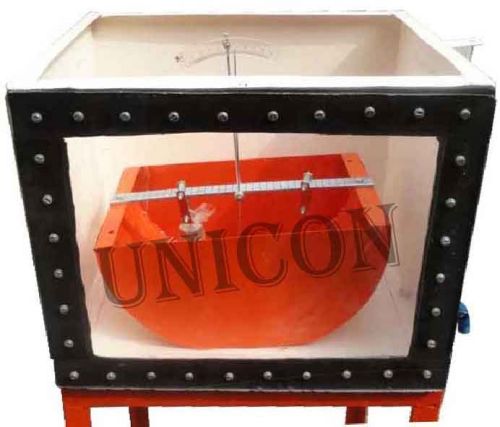

A pontoon is allowed to float in a small tank having a transparent side. Removable steel strips placed in the model for the purpose of changing the weight of the model. Displacement of weight is measured with the help of a scale. By means of a pendulum (consisting of a weight suspended to a long pointer) the angle of tilt can be measured on a graduated arc.
For tilting the ship model, a cross bar with two movable hangers is fixed on the model. Pendulum and graduated arc are suitably fixed at the center of the cross bar. A set of weights is supplied with the apparatus.
EXPERIMENTS:-
Ø Determination of the Metacentric height and position of the Metacentric height with angle of heel of ship model.
TECHNICAL SPECIFICATION: -
Ø Pontoon : Size 300 x 150 mm (Approx.) with a Horizontal Guide Bar for aliding weight.
Ø Material : Stainless Steel Pontoon
Ø Water Tank : Size 600 x 400 x 400 mm (Approx.)
Ø Front Window of Tank : made of GlassPerspex
Ø A set of weights is supplied with the apparatus.
The whole Set-up is well designed and arranged in a good quality painted Structure.
