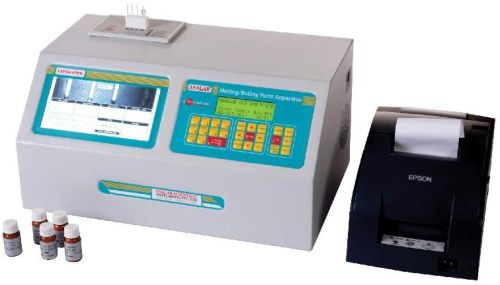

Automatic Programmable Melting Point Apparatus

Model: µThermoCal50 | Make: ANALAB | HSN Code: 90278090

Supplied with Melting Capillary One End Sealed (Pack of 100 Nos.), Boiling Tube, Sample Tapping Rod, Two Melting Standards 49ºC and 238ºC, Forceps, Power Cord, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.

Technical Specification:

Temperature Controller                 : Microcontroller Based

Detection Principal of Melting Point  : Automatic by Silicon Photodiode

Heating Media                             : By Aluminum Block

Temperature Range                       : +5°C above ambient to 400°C

Temperature Accuracy                  : A) 10°C above ambient to 100°C ……   ± 0.2°C

  B) 101°C to 200°C …………………………  ± 0.4°C

  C) 200°C to 400°C …………………………  ± 0.5°C
