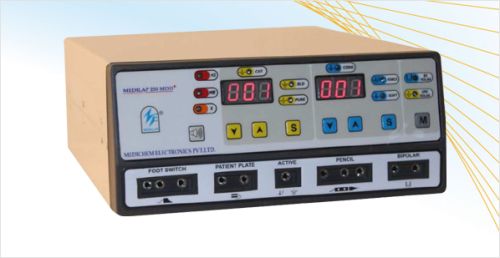

Medilap 250 MDD+

Listing ID #3407704

Get Latest Price

Input Power180-270V AC
Current Fuse7 Amps.
OutputAll Floating Output.
Nominal Frequency350 KHz
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

convenient for visiting consultants, suitable for general surgical applications and compact and light weight size of the device.
reduced rf distortion in other o.t. Equipments due to noiseless performance.
patient plate monitoring facility, eliminate the risk of site burns.
independent mono polar and bipolar output can be used simultaneously by foot switch and hand both.
all power modes are separately indicated by led indicatiors.
push button selector switch for controlling power intensity and selecting different modes.
digital display for set power intensity for differnet modes.

technical specification

mode

sub mode

max.rated load (ohms)

max. Rf power

monopolar

cut

pure

blend

500 âï¿½¦

250 w

monopolar

cut

soft

force

500 âï¿½¦

125 w

175 w

bipolar

cut

pure

blend

100 âï¿½¦

150 w

100 w

bipolar

coag

soft

force

100 âï¿½¦

75 w

100 w

technical data

input power supply
input power	180-270v ac
current fuse	7 amps.
output control
digital and push switch control in all modes 250 mdd*
safety features :
unit construction	according to iec-6060-2-2 & 60601-1-1.
protection class	ii-b.
unit type	cf.
output	all floating output.
nominal frequency	350 khz
high frequency leakage current
