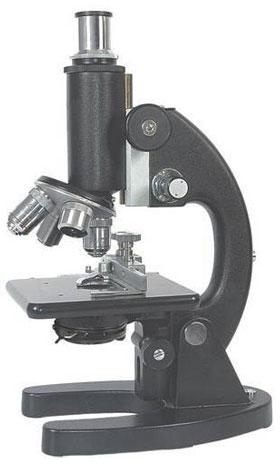

Contact SupplierWe have the proficiency in designing and developing the best Medical Microscope in the market. Medical Microscope has stable & robust horse shoe based body inclined through 90o standard length 160mm provided with separate coarse & fine focusing knobs with graduation on one side. The coarse movement by rack & pinion and fine movement by screw lever mechanism. The mechanical stage X – Y movement works on dovetail slide. The triple revolving nosepiece is provided with positive click stop for proper cartelized. The fixed square stage 125 x 125mm with stage clips to hold the slide. The illuminated with 50mm diameter Plano concave mirror mounted on gimbals mount. The two achromatic objectives of 10x & 40x (SL) 100x (Oil, SL) and two hygienic eye pieces of 6x, 10, or 50x provided. The moveable condenser is provided with iris diaphragm having 1.2 N.A. Our valued clients can avail Medical Microscope in different technical specifications as per their requirement.
