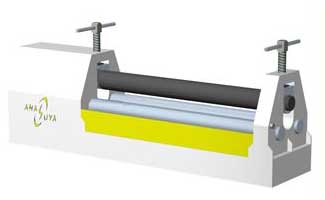

Mechanical Plate Rolling Machine

Listing ID #1393246

The company holds specialization in offering to the clients Mechanical Plate Rolling Machine as per international quality standards. This machine is operated manually and its working is based on screw-nut principle. High-end performance and easy functioning are some of special features of the Mechanical Plate Rolling Machine that we offer to the clients.
Components :

• Comprises of working parts and two drive system parts
• Working parts consists
  • Right and left bearing plate
  • One upper roll
  • Two down rolls (material of rolls is EN8 / Forge Steel / Steamer Shaft.)
  • Lifting screw

• Pressing of top roll is driven through fine threaded screw equipped at both ends of TOP-roll by Tommy bar (provided with machine)
• Down rolls causes upper rolls to rotate
• Upper rolls can be adjusted up and down by rotating screw equipped at both the ends
• Drive system consists of main motor, main speed reducer gearbox and other accessory parts.
• Down rolls are driven through the main motor and main speed reducer gear
• Main speed reducer spindle drive two down rolls by one group gears
• Direction can be adjusted by the main motor
• Device that is unloaded is used to bend the circle type for removing the work piece
• Unloading of the upper rolls for moving till the limit position
• Balance device on upper rolls ends strikes upper rolls for removing the work pie

• If the thickness of the plate is half its capacity, then it can be bent on the machine by hammering
• Thicker plates are positioned outside the machine
• Set the plate between top rolls and bottom by manually adjustments of the top roll
• Place the top roll downwards and provide pressure on the plates
• Clock wise turn the main motor until one end of the plate comes over the first bottom roll
• Reverse the motor and get second end on the second bottom
• Continue the process till you get the desired results
