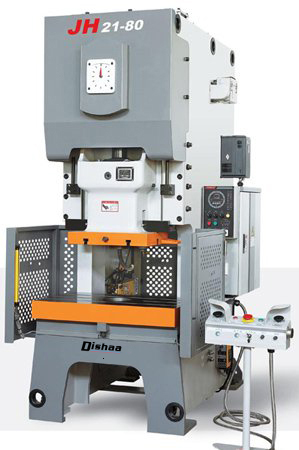

Mechanical Eccentric presses

Listing ID #4106002

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Main features of Mechanical Eccentric Presses Incredible pressing accuracy. Steel welded frame with high rigidity. Motor with inverter. Combined wet friction clutch. Rectangular hexahedral....

View More Details

Send Enquiry

Product Details

Main features of Mechanical Eccentric Presses

Incredible pressing accuracy.
Steel welded frame with high rigidity.
Motor with inverter.
Combined wet friction clutch.
Rectangular hexahedral lengthened guide; ocp-315/400 with octahedral lengthened guide.
Hydraulic overload protector.
Ocp-25/45: manual adjusting, scale indicated.
Ocp-45: optional elec. adjustment with digital display.
Ocp-63 superior: elec. adjustment with digital display.
Lifting balance cylinder.
Imported dual solenoid valve.
Forced grease lubrication.
Integrated panel (elec. cam included).
PLC controller.
Ejector.
Optional: air cushion, light curtain, automotive device.

Specifications of Mechanical Eccentric Press

Model			OCP-25T	OCP-45T	OCP-63T	OCP-80T	OCP-110T	OCP-125T
Nominal Force		kN	250	450	630	800	1100	1250
Nominal Stroke		mm	3	4	4	5	6	6
Slide Stroke		mm	80	100	120	140	160	160
SPM	Fixed (Optional)	min-1	100	80	70	60	50	50
SPM	Variable	min-1	80-120	70-90	60-80	50-70	40-60	40-60
Max Die Height		mm	250	270	300	320	350	350
Die Height Adjustment		mm	50	60	80	80	80	80
Between Slide Center & Frame		mm	210	230	300	300	350	350
Bolster Area (FB×LR)		mm	400×700	440×810	580×900	590×1000	680×1150	680×1150
Bolster Thickness		mm	80	110	110	120	140	140
Bed Opening (Dia./F·B×L·R)		mm	260×250	300×300	390×460	390×520	420×540	420×540
Slide Area (FB×LR)		mm	300×260	340×410	400×480	420×560	500×650	540×680
Shank Hole (Dia×Depth)		mm	φ40×60	φ40×60	φ50×80	φ50×80	φ60×80	φ60×80
Between Columns		mm	450	550	560	640	760	760
Main Motor Power		KW	4	5.5	7.5	7.5	11	11
Outline Dimension (F·B×L·R×H)		mm	1600×1125	1780×1225	2000×1305	2050×1390	2030×1620	2030×1660
Outline Dimension (F·B×L·R×H)		mm	×2200	×2400	×2600	×2900	×3060	×3060
Net Weight		Kg	2600	3450	5400	7000	9840	10400

Company Details

We have launched “DISHAA” in UAE; a brand evolved after years of continuous performance, workmanship, quality and meeting customer level of satisfaction.
DISHAA– NC / CNC Hydraulic Press Brakes, Shears, Guillotines, Plate Rolling, Iron Worker & Press Machines are now locally available. DISHAA is a brand which delivers innovations & solutions to customers by carefully listening, meeting their needs and budgets always. The company has the best range of machines, tools & equipments capable of manufacturing machines within 25-30 days – A machine readiness time unbeatable by any other machine suppliers.
Our machines incorporate world famous reputed components like:
Hydraulics from BOSCH REXROTH
Electric motors from SIEMENS
Electricals from SCHNEIDER ELECTRICS
Pump from SUNNY USA
Hydraulic seals from PARKER USA / NOK JAPAN
Tubings and Fittings from EMB GERMANY
Ballscrew with Timer Belt & Pulley
Laser Safety Curtain as Standard Features in all our Press Brakes
Quick Clamp Blade System as another standard feature in all our Press Brakes yet at affordable prices.
We deliver machines with complete value for money and a quick response service back up team in UAE for any support.
