Measuring Pins

Listing ID #386434

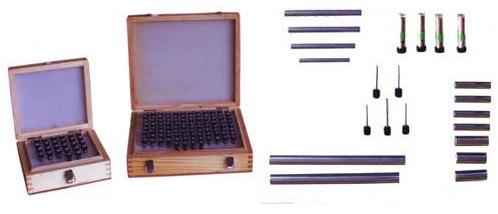

We manufacture, export and supply high quality Measuring Pins. Measuring Pins are manufactured based on relevant IS specification from graded Steel. Pins are supplied loose, with knobs or in plastic container and set of pins in attractive wooden boxes. Pins of special design and lengths can also be manufactured to customer’s specification. The Measuring Pins are also manufactured for special applications like gear measurements, thread measurements etc. Specifications Tolerance of the pin is + 2 micron or ±1 micron, on diameter based on customers requirement. Generally, pin sets from 0.5 mm to 12 mm are available in stock in increments of 0.01mm, 0.02mm, 0.05mm. Applications

• Checking of hole sizes
• Used as substitute for thread measuring wire
• Checking of locations
• Used as substitute for gear measuring wires
• Checking of distance between the holes
• Checking of sizes of external and internal dovetails
• Checking of slot sizes
• External checking of taper gauges
• Checking of printed circuit boards P.C.B. hole checking

• 0.5 mm to 3 mm with 40 mm length
• 3 mm to 20 mm with 50 mm length

• Automobile industry
• Production industry
• Mechanical industry
• Engineering industry
• Gear manufactures
