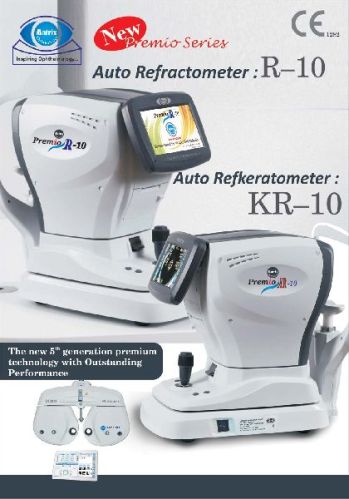

• Tilt-able Large colour LCD (7 inch) with touch screen interface, motorized chinrest & auto- racking helps an user to use single handedly.
• Reliable easy load fast thermal Printer with Auto Cutter, avoids printing paper jam.
• Smooth Motorized Chin Rest operation from operator’s side close to joy stick.
• Easy and elegant looking Flip / Flop temporary locking knob to arrest unwanted movement when not in use.
• Auto Tracking of Central Cornea with Auto Shot.
• BMM-3 / BMM-5 (Burst measuring mode of 3 or 5 Readings in one shot).

Refractive Measuring Range Sph. : ± 25D, CyI. : ± 10D (0.12D or 0.25D step)

Axis : 1~180° (1° step)

Keratometer Measurement Range Radius of Corneal curvature : 5.0~10 mm (0.01 mm step)

Corneal Refraction : 33.00D ~ 67.00D (0.12D/0.25D step)

Corneal Astigmatism : 0 ~15.00D (0.12D/0.25D step)/Axis : 1~180

Measurement Mode Automatic or Manual (Selectable from Screen)

Mode of Operation REF mode/K-mode or R/K mode (selectable)

Vertex Distance 0.12, 13.5 or 15mm (selectable)

Min.Measurable Pupil Diameter Ø 2.00 mm

Measurable Pupillary Distance (PD) 30~85mm (1mn step), Automatic

Measurable Cornea, IPIS & Pupil Size 2.00mm~12.00mm, by adjusting the cursor on the image

Fixation Target Scientifically designed auto-fogged scenic picture

Printer Fast Thermal Printer with easy paper load facility

Internal Monitor 5.7 inch hi-resolution color LCD monitor

Shifting Range Back & Forth : ±19mm ; right & left : ±44mm

UP/DN : ±19 mm ; Chin rest : ±30mm

Power Saving Function OFF, 5min or 15 min (selectable)

Data Transmission RS-232 interface (For Auto Phoropter)

Power Source / Consumption 110~240. AC 50~60 Hz / 60 VA

W 288(W) x 500 (D) x 480 (H) mm / 14 Kg

Quality Certification CE & ISO 9001 : 2000
